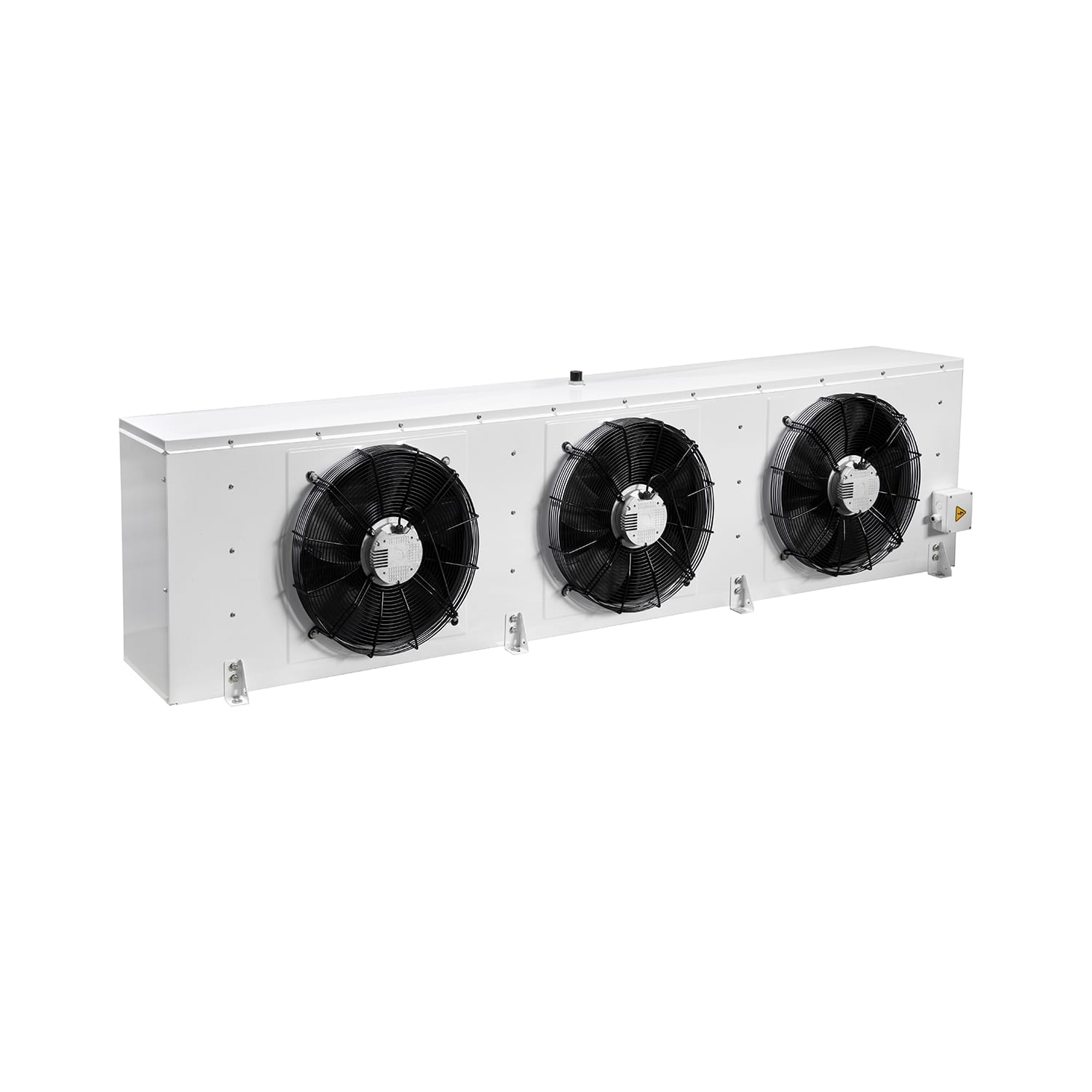

Commercial Cold Storage Evaporator Unit Cooler for Walk-in Cooler
مكثف تكييف الهواء لنظم التبريد الأصلية، مع مراجع أنابيب الألمنيوم والزينون المنشورة، مراجعة الرسومات أو العينة، إرشادات العملية ونقاط فحص طلب السعر.
تفاصيل المنتج
توفر شركة دومي للتبريد هذا cold room air cooler for buyers who require a drawing-based or project-specific evaporator review before quotation. The air cooler is used in refrigerated rooms, freezer rooms, food storage facilities, and other commercial refrigeration systems where controlled air circulation and heat exchange are required.
Because refrigeration systems vary in temperature range, refrigerant type, room volume, airflow requirement, and installation conditions, an air cooler should not be selected solely by fan quantity or external dimensions. Cooling duty, refrigerant conditions, air throw, defrost method, installation space, and operating environment must all be reviewed before release.
نطاق المنتج ودور النظام
A cold room air cooler acts as the evaporator-side heat exchanger within a refrigeration system. It absorbs heat from the room air and transfers it to the refrigerant circulating inside the coil. The complete cooling performance depends on the interaction between the evaporator coil, fan motors, refrigeration unit, room insulation, and operating conditions.
This page is intended for OEM and engineering discussions rather than a claim that one standard air cooler fits every cold room project.
- التطبيقات النموذجية: cold rooms, freezer rooms, food processing facilities, supermarkets, beverage storage, and refrigerated warehouses.
- الاستخدام المحتمل للمشروع: commercial refrigeration systems requiring air circulation and evaporator heat exchange.
- أساس التخصيص: Domi can design and manufacture air coolers according to customer drawings, samples, capacity requirements, and installation conditions.
مرجع البناء المنشور
The values below are general construction references used for project discussions. Final specifications should be confirmed through approved drawings and technical documents.
| المعلمة | Typical Reference | Confirm Before Production |
|---|---|---|
| Tube Material | أنبوب النحاس | Tube diameter, wall thickness, pressure rating |
| Fin Material | Aluminum fin | Fin pitch, fin thickness, corrosion protection |
| الغطاء الخارجي | Powder-coated steel or aluminum | Surface finish, mounting requirements |
| Fan Motors | Axial fan motors | Quantity, airflow, voltage, frequency |
| Defrost Option | Electric or off-cycle defrost | Defrost method, heater specification |
| التطبيق | Cold room and freezer room refrigeration | Actual room temperature and cooling load |
| التخصيص | Drawing and sample based | Final dimensions, connections, airflow, controls |
Air cooler configuration references
Air cooler selection depends on room volume, storage temperature, refrigerant conditions, and airflow requirements.
| Configuration Item | Typical Range | Engineering Check |
|---|---|---|
| Fan Quantity | 1–4 fans | Airflow requirement and room dimensions |
| Fan Diameter | Project dependent | Air throw distance and noise limits |
| Evaporating Temperature | Medium or low temperature applications | Refrigeration system compatibility |
| Coil Rows | Project dependent | Cooling capacity and pressure drop |
| Fin Spacing | Project dependent | Frost accumulation and humidity conditions |
| Refrigerant Connection | Customized | Pipe routing and installation space |
Materials and component considerations
The air cooler assembly may include:
- Copper tube evaporator coil
- Aluminum heat-transfer fins
- Axial fan motors
- استنزاف عموم
- Powder-coated housing
- Electric defrost heaters (if required)
- Mounting brackets and accessories
The final material specification should be determined according to corrosion exposure, room humidity, cleaning procedures, and project requirements.
How to select a cold room air cooler
For a new refrigeration project, provide the following information for engineering review:
1. Room conditions
- Cold room dimensions
- Room volume
- Storage product type
- Operating temperature
- Ambient conditions
2. Cooling duty
- Required cooling capacity
- Product loading schedule
- Daily operating hours
- Heat load estimation
3. Refrigeration system
- نوع مادة التبريد
- درجة حرارة التبخير
- درجة حرارة التكميد
- ضغط التصميم
4. Air-side requirements
- Required airflow
- Air throw distance
- Fan quantity preference
- Noise limitations
5. Installation requirements
- Ceiling mounting dimensions
- مساحة التركيب المتاحة
- Refrigerant connection position
- موقع مخرج التصريف
6. Environment
- High-humidity operation
- Frequent door opening
- Corrosive atmosphere
- Cleaning and sanitation requirements
7. Quality requirements
- Leakage testing
- Electrical testing
- Defrost verification
- Packaging and labeling requirements
- Traceability documentation
مسار التصنيع والإصدار
The manufacturing process may include:
- Tube processing – tube cutting and bending according to approved drawings.
- Fin production – fin punching and stacking.
- تجميع الملف – tube expansion and heat exchanger assembly.
- Brazing and connection installation – refrigerant circuit completion.
- Housing assembly – fan motors, drain pan, and casing installation.
- اختبار – leakage testing, electrical inspection, and dimensional verification.
- Packing – product protection and shipment preparation.
Inspection methods, acceptance criteria, and reporting requirements should be confirmed for each project.
مراجعة الرسم، العينة، وعرض السعر
To reduce the risk of selecting an unsuitable air cooler, provide as much information as possible:
- Existing air cooler photos or sample
- Cold room dimensions
- Room operating temperature
- نوع مادة التبريد
- Cooling capacity requirement
- متطلبات تدفق الهواء
- Fan quantity preference
- Connection dimensions and locations
- Installation drawings
- Quantity and annual demand
- متطلبات التعبئة والتغليف
- Destination market
MOQ, lead time, tooling, certificates, and testing documents depend on the final project specification and should be confirmed during quotation.
فحوصات الاستبدال والتوافق
A replacement cold room air cooler is not automatically interchangeable because two units have similar dimensions. Differences in coil design, airflow, fan performance, refrigerant circuiting, defrost method, and connection positions can affect installation and system performance.
For replacement projects, compare:
- سعة التبريد
- تكوين المروحة
- أبعاد الملف اللولبي
- Refrigerant connections
- Mounting locations
- Defrost system
- Electrical specifications
- Room operating conditions
A drawing review is recommended before approving a replacement unit.
الأسئلة الشائعة
What is a cold room air cooler?
A cold room air cooler is an evaporator assembly that absorbs heat from the refrigerated space and transfers it to the refrigerant inside the coil. It also circulates air throughout the room using fan motors.
What applications are suitable for this air cooler?
Typical applications include cold rooms, freezer rooms, food storage facilities, supermarkets, restaurants, warehouses, and food-processing environments.
Can Domi manufacture air coolers according to drawings?
Yes. Air coolers can be designed and manufactured according to customer drawings, samples, capacity requirements, and installation conditions.
How many fans can be installed?
Fan quantity depends on the required airflow and cooling capacity. Typical configurations range from one to four fans.
What defrost options are available?
Depending on project requirements, electric defrost, off-cycle defrost, or other customized solutions may be available.
Can the air cooler be used in freezer rooms?
Yes, provided the coil design, fin spacing, defrost method, and operating conditions are suitable for low-temperature applications.
Are MOQ and lead time fixed?
No. MOQ and lead time depend on design complexity, quantity, materials, testing requirements, and production scheduling.
What information is required for quotation?
Please provide room dimensions, operating temperature, refrigerant type, cooling capacity, airflow requirements, installation drawings, quantity, and any special requirements.
طلب عرض سعر مخصص
To review a cold room air cooler for a new refrigeration project or replacement application, send your drawing, room specifications, operating conditions, required capacity, and target quantity for engineering evaluation.
Domi Refrigeration can support OEM and ODM air cooler projects with customized coil design, fan configuration, refrigerant connections, and installation layouts according to customer requirements.
