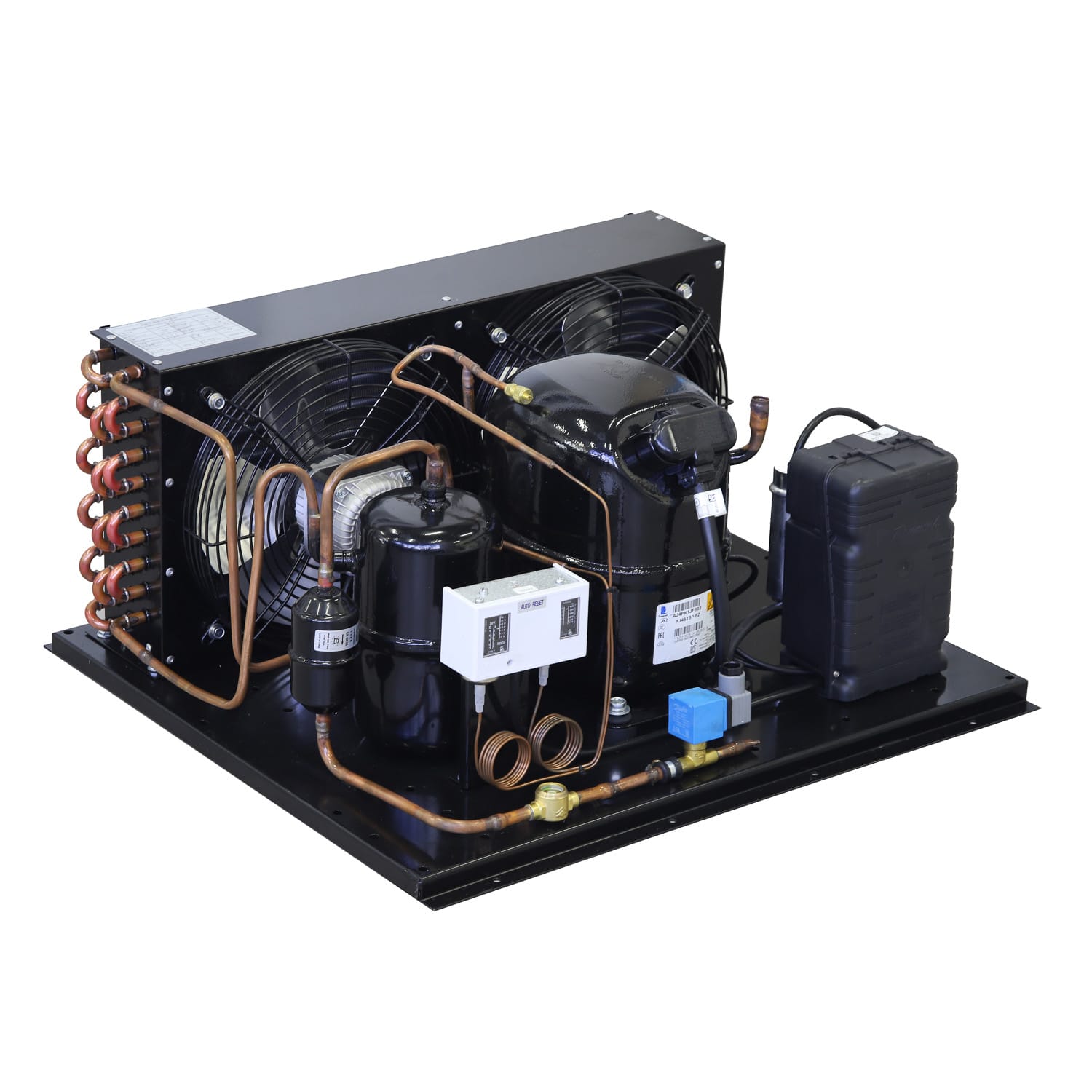

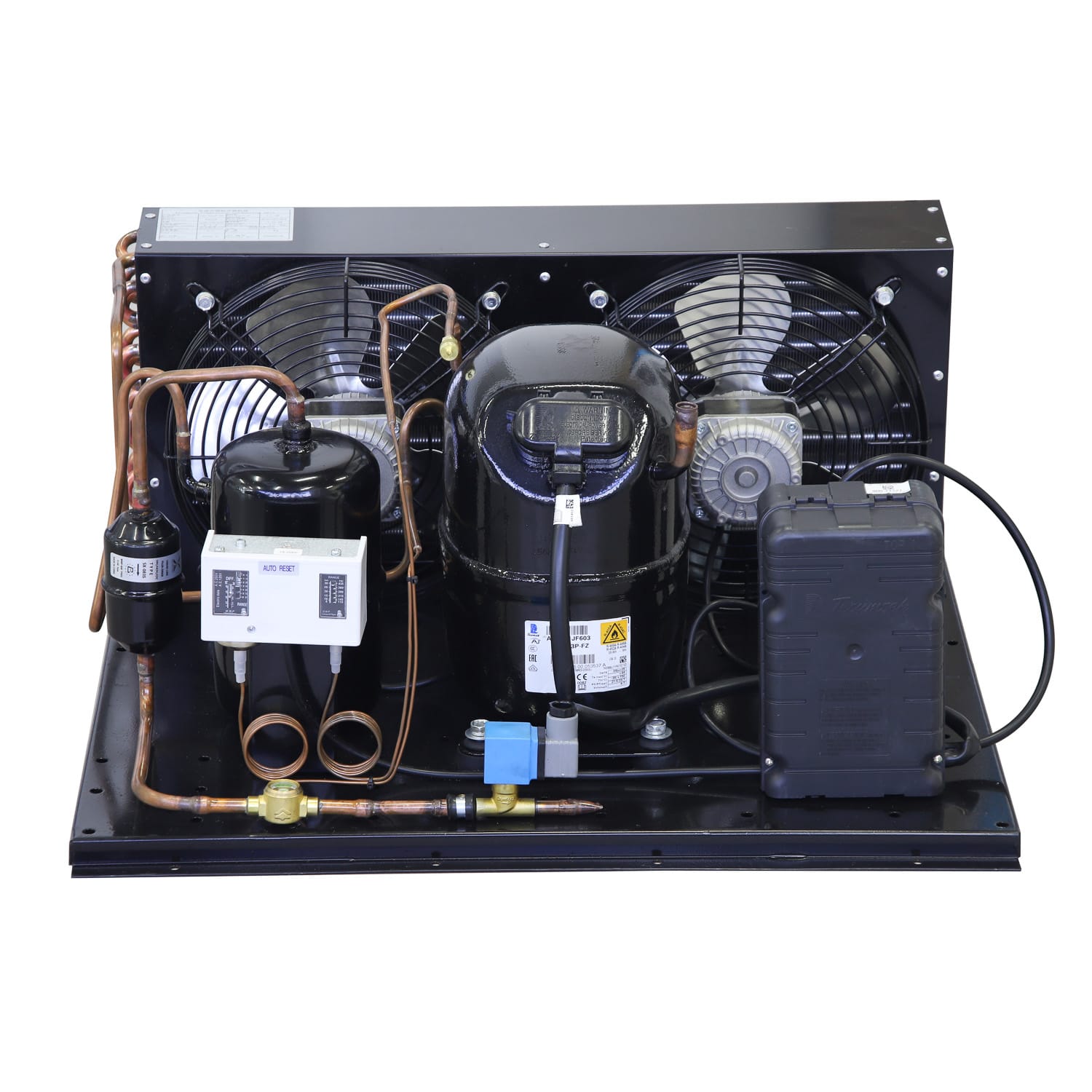

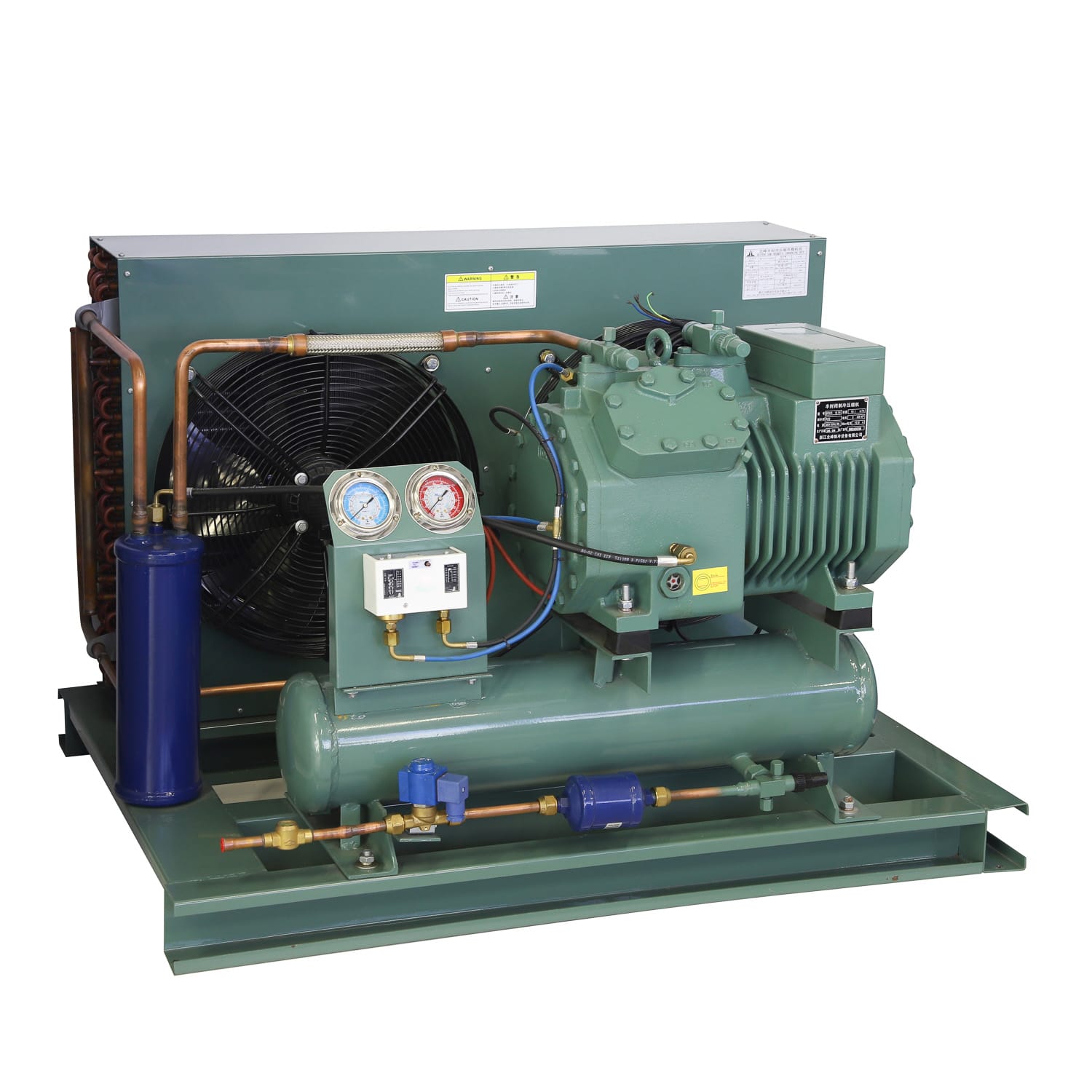

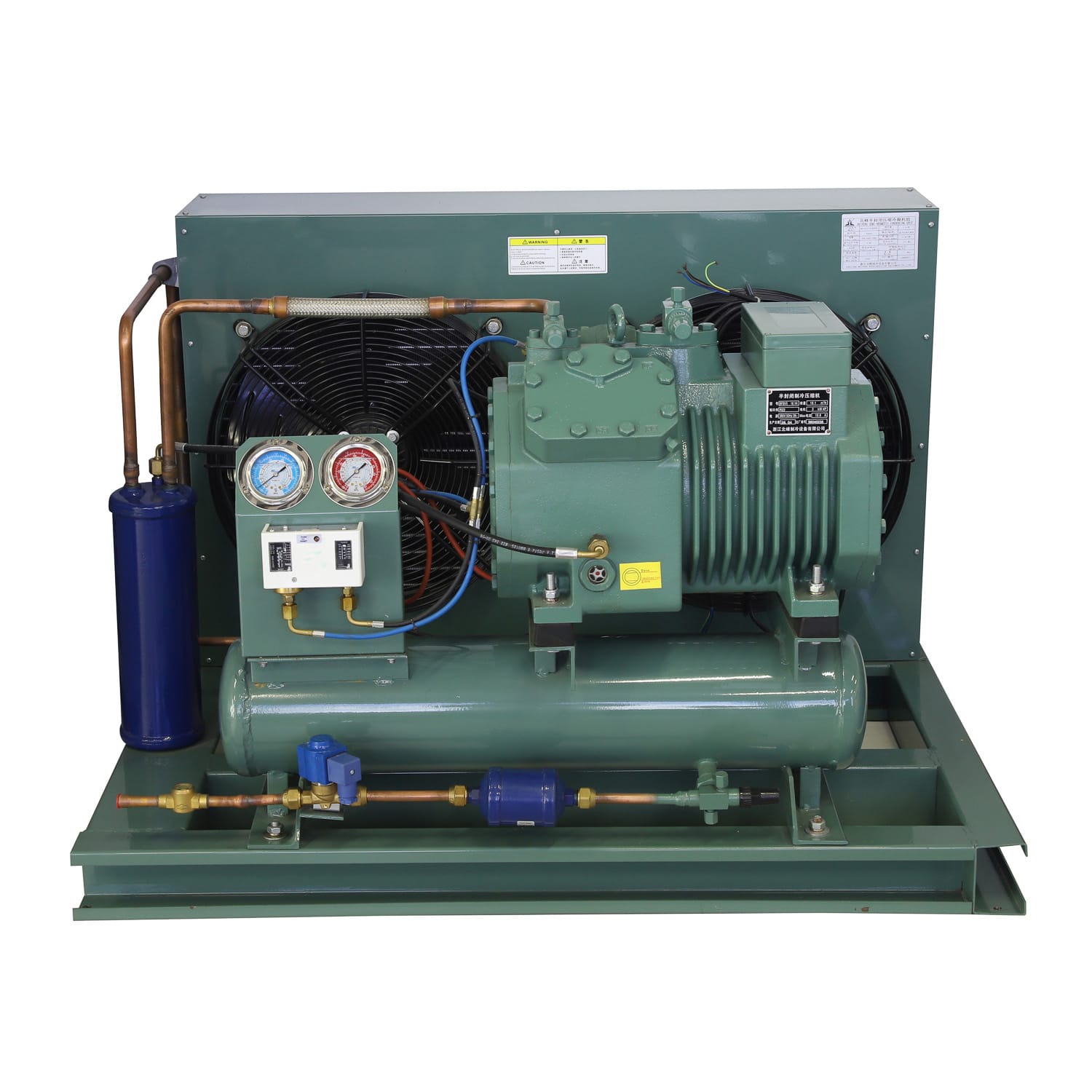

Commercial Refrigerator and Freezer Condensing Unit

Domi Refrigeration поставляет это compact condensing unit for commercial refrigerators and freezers for OEM buyers who require a refrigeration assembly matched to specific cabinet dimensions, operating conditions, refrigerant requirements, and cooling loads.

The condensing unit integrates key refrigeration components into a compact assembly and can be used with compatible evaporators in commercial refrigeration equipment. Typical applications include display refrigerators, beverage coolers, reach-in refrigerators, commercial freezers, and other refrigerated cabinets.

A condensing unit should not be selected from compressor horsepower, outside dimensions, or refrigerant alone. Cooling capacity, evaporating and condensing conditions, refrigerant, compressor operating envelope, condenser airflow, electrical supply, installation space, and system controls should be reviewed before production or replacement.

Область применения продукта и роль системы

A condensing unit forms the high-pressure side of a vapor-compression refrigeration system. Depending on the project configuration, the assembly typically combines a compressor, condenser, fan motor, piping, and mounting base, with additional refrigeration or electrical components specified according to the equipment design.

The unit works together with the evaporator, expansion device, refrigerant piping, controls, and cabinet airflow system. Final system performance therefore depends on the complete refrigeration design rather than the condensing unit alone.

Typical applications include:

• Commercial refrigerators
• Commercial freezers
• Display refrigerators
• Beverage coolers
• Reach-in refrigerators and freezers
• Upright refrigerated cabinets
• Undercounter refrigeration equipment
• Food and beverage display cabinets
• Other customized refrigeration equipment

Domi can review OEM projects based on customer drawings, samples, equipment specifications, and required operating conditions.

Typical construction reference

The configuration below is a general reference for project discussion. Actual components and specifications depend on the approved design.

Component brands, materials, electrical devices, refrigerant accessories, and connection arrangements should be confirmed during the RFQ and drawing-approval stages.

Compact design for refrigeration cabinets

Commercial refrigerators and freezers often have limited space for the refrigeration system. The condensing unit therefore needs to be matched closely with the cabinet structure, ventilation path, and service area.

Important mechanical and airflow considerations include:

• Overall width, height, and depth
• Compressor position
• Condenser face area
• Fan size and airflow direction
• Air inlet and outlet clearance
• Suction and liquid line positions
• Electrical connection location
• Mounting-hole pattern
• Vibration isolation
• Service accessibility
• Clearance from cabinet panels and other components

A compact outside dimension alone does not determine whether a condensing unit is suitable for a particular refrigerator or freezer.

How to select a refrigerator or freezer condensing unit

For a new OEM refrigeration project, provide the following information for engineering review:

1. Equipment application: refrigerator, freezer, display cabinet, beverage cooler, reach-in cabinet, or other refrigeration equipment.
2. Cooling requirement: required refrigeration capacity, cabinet volume, product load, and expected operating range.
3. cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits cabinet temperature, evaporating temperature, condensing temperature, ambient temperature, and expected maximum operating condition.
4. cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits refrigerant designation and any project-specific refrigerant requirements.
5. Compressor requirements: preferred compressor model or brand, capacity, displacement, voltage, frequency, and operating envelope where specified.
6. Condenser and airflow: required heat-rejection duty, fan configuration, airflow direction, ventilation openings, and available air-side clearance.
7. Installation envelope: maximum width, height, depth, mounting-hole locations, piping exits, and service space.
8. Electrical requirements: voltage, frequency, phase, starting components, protection devices, and control interface.
9. Quality requirements: leakage testing, electrical inspection, dimensional inspection, labeling, traceability, and packaging requirements.
10. Commercial information: sample quantity, estimated annual volume, SKU mix, destination market, and requested delivery schedule.

Compressor and refrigerant matching

The compressor is a key component of the condensing unit, but compressor selection should be based on the actual refrigeration operating conditions rather than nominal horsepower alone.

The following should be reviewed together:

• Хладагент
• Required cooling capacity
• Температура испарения
• Температура конденсации
• Параметры всасывания
• Температура окружающей среды
• Voltage and frequency
• Compressor operating envelope
• Expected load range
• Starting and protection requirements

If the buyer specifies a compressor model, Domi can review the surrounding condenser, fan, piping, base, and accessory configuration according to the project requirements.

Condenser and airflow review

The condenser must reject the heat generated by the refrigeration system under the specified operating conditions. Condenser size, fan airflow, ventilation openings, and installation clearance therefore need to be considered together.

Restricted airflow, hot-air recirculation, insufficient ventilation clearance, or unsuitable fan selection can affect condensing conditions and system performance.

For cabinet-integrated condensing units, provide the cabinet ventilation arrangement or installation drawing whenever possible.

cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits

For refrigerator and freezer manufacturers, the condensing unit often needs to fit a specific cabinet platform rather than a universal installation space.

cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits based on:

• cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits
• Existing samples
• Required refrigeration capacity
• cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits
• Хладагент
• Compressor requirements
• Condenser configuration
• Fan and airflow requirements
• Electrical specifications
• Refrigerant connections
• Mounting interfaces
• cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits

Before mass production, the component list, drawing revision, key dimensions, electrical specification, piping arrangement, inspection requirements, and sample approval criteria should be confirmed.

cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits

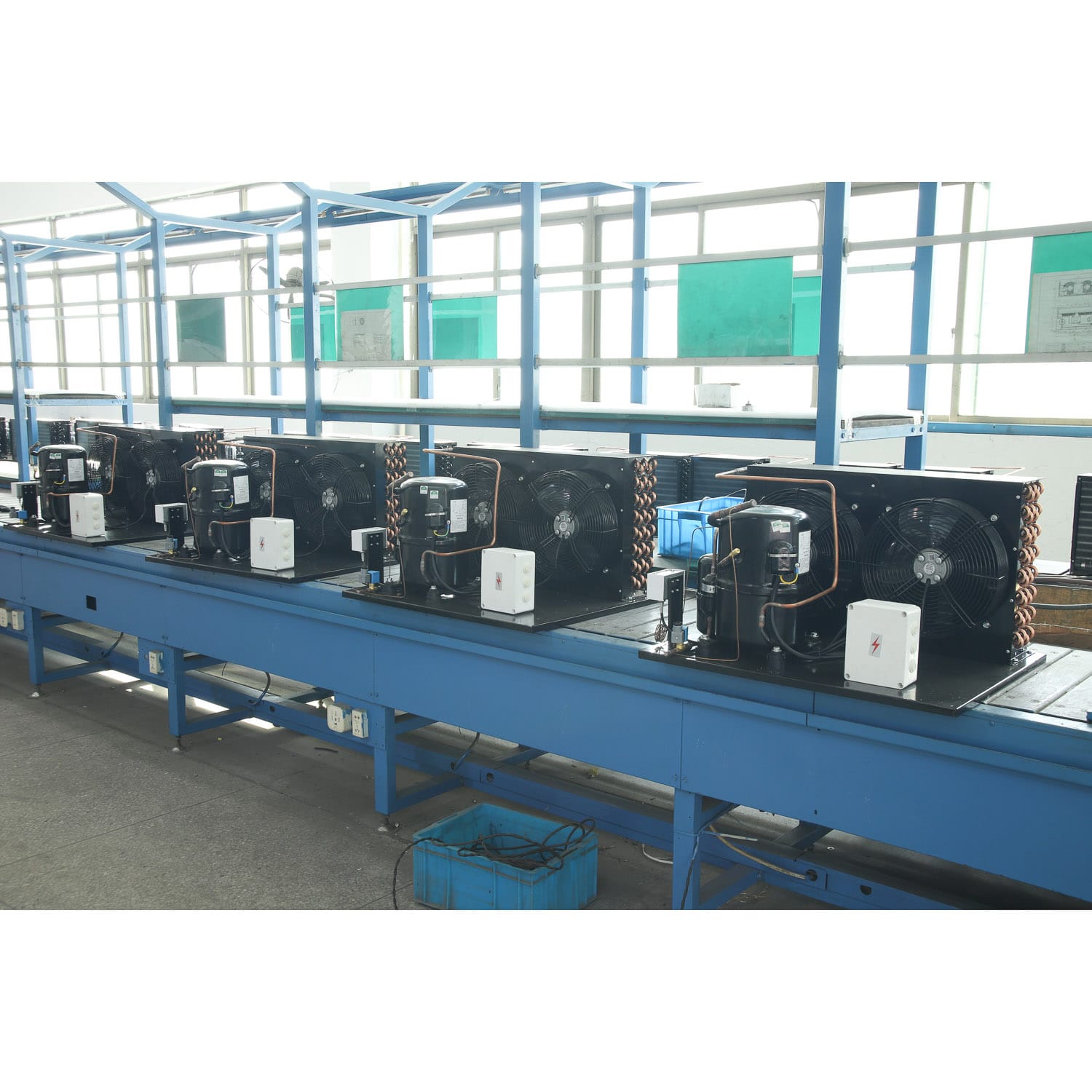

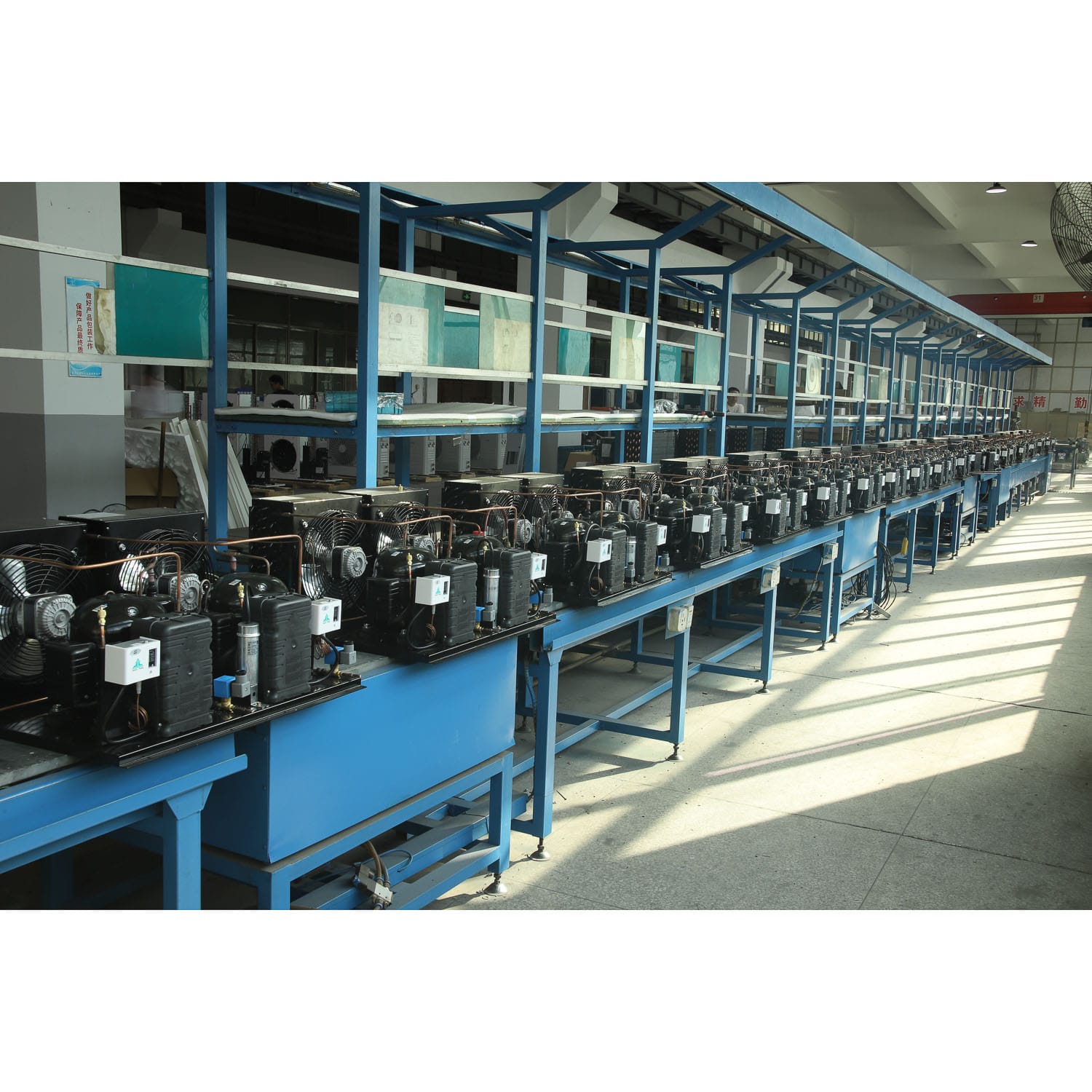

Depending on the configuration, the manufacturing and assembly process may include condenser production, tube forming, brazing, compressor installation, fan assembly, refrigeration piping assembly, electrical component installation, leakage testing, inspection, and packing.

For project-specific orders, the buyer and Domi should confirm the required:

• Component specifications
• Механическая проверка размеров
• cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits
• cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits
• cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits
• Compressor and fan identification
• cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits
• Packaging protection
• Inspection records

Test conditions, sampling plans, and acceptance criteria should be defined according to the approved project specification.

Обзор чертежа, образца и коммерческого предложения

For an accurate quotation, provide as much of the following information as available:

• Existing condensing unit photos or sample
• Equipment model and application
• Overall dimensions and installation drawing
• Required cooling capacity
• Хладагент
• cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits
• Температура окружающей среды
• Compressor model or preferred specification
• Voltage and frequency
• Condenser and fan requirements
• Suction and liquid connection sizes and positions
• Mounting-hole locations
• Required refrigeration and electrical accessories
• cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits
• Packaging and labeling requirements
• cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits

MOQ, lead time, component brands, tooling, packaging, certificates, and test documentation are project-dependent and should be confirmed during quotation.

Проверка замены и совместимости

A replacement condensing unit is not automatically interchangeable because two units use compressors with similar capacities or have similar outside dimensions.

Differences in refrigerant, compressor operating envelope, condenser capacity, fan airflow, electrical specification, piping connections, mounting locations, and control components can affect compatibility.

For replacement projects, compare:

• Хладагент
• Холодопроизводительность
• Compressor specification
• cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits
• Voltage and frequency
• Condenser configuration
• Fan airflow
• Suction and liquid connections
• Overall dimensions
• Mounting points
• Electrical components
• Cabinet ventilation

Send the existing unit information, equipment interface, and operating conditions for review before approving a replacement.

Часто задаваемые вопросы

What is a refrigeration condensing unit?

A refrigeration condensing unit is an assembly containing the compressor and condenser-side components of a refrigeration system. Depending on the design, it may include the compressor, air-cooled condenser, fan motor, refrigerant piping, mounting base, and additional refrigeration or electrical components.

What equipment can this compact condensing unit be used for?

Typical applications include commercial refrigerators, freezers, display refrigerators, beverage coolers, reach-in cabinets, and other commercial refrigeration equipment. Final suitability depends on the required capacity and system operating conditions.

Can Domi customize the condensing unit?

Yes. The compressor, condenser, fan, piping arrangement, base dimensions, mounting points, connections, and additional components can be reviewed according to customer drawings and project requirements.

Can I specify the compressor?

Yes. If you already have a preferred compressor model or specification, provide it with the operating conditions. The remaining condensing unit configuration can then be reviewed around the compressor and equipment requirements.

How do I select the correct cooling capacity?

Cooling capacity should be evaluated at the actual evaporating and condensing conditions for the refrigeration system. Compressor horsepower or displacement alone should not be used to determine system capacity.

Can you manufacture a replacement unit from a sample?

An existing unit can be used as a reference for dimensional and component review. Refrigerant, cooling capacity, operating temperatures, electrical specifications, and equipment interfaces should also be provided to verify compatibility.

Are MOQ and lead time fixed?

No. MOQ and lead time depend on the compressor and component selection, customization requirements, order quantity, testing requirements, and current production schedule.

What information should I send for a quotation?

Send the equipment application, required cooling capacity, refrigerant, evaporating and condensing conditions, compressor requirement, voltage and frequency, overall dimensions, piping connections, drawing or sample information, estimated quantity, and destination market.

Запросить индивидуальное коммерческое предложение

For a commercial refrigerator or freezer condensing unit project, send Domi Refrigeration your equipment specifications, drawing or existing sample, required cooling capacity, refrigerant, operating conditions, compressor requirements, electrical specifications, and estimated quantity.

Domi can review the compressor, condenser, fan motor, refrigerant piping, mounting base, and related components as an integrated assembly to develop a compact condensing unit matched to your commercial refrigeration equipment.
