Input and control method
Check: Provide voltage, frequency, phase, control signal, connector and speed requirement
Consider: Confirms the EC motor's electrical and control interface.
REFRIGERATION COMPONENTS
EC Motors
Energy-efficient EC motors for refrigeration fans, air coolers and commercial cooling systems.
EC motors are selected through both motor technology and the fan assembly they drive. This category is for energy-conscious refrigeration fan reviews where the electrical input, control signal, speed requirement, mounting, fan geometry and operating environment must be confirmed together. Domi's published products include an electronically commutated motor example. Send the old motor reference, supply and control data, fan or wheel details, mounting, rotation, envelope and quantity so the requested configuration can be reviewed without assuming a universal EC interface.
Products
- Commercial Refrigeration
Electronically Commutated Motor
- EC Motors
IP54 EC Fan Motor
Product and Application Visuals

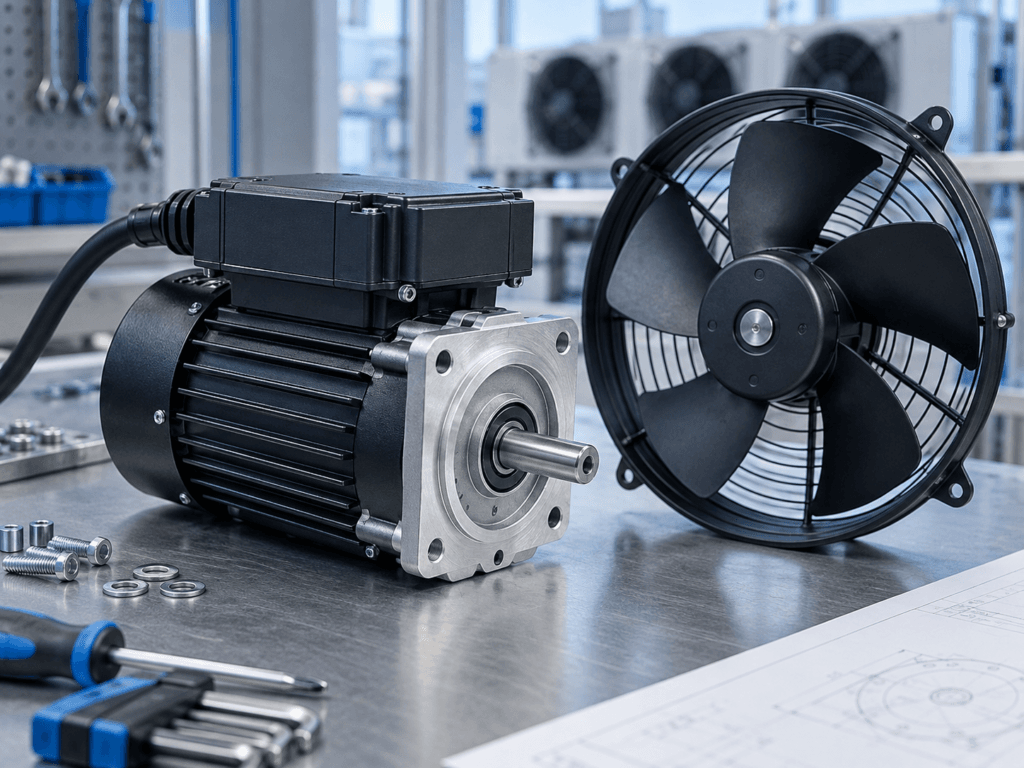

EC motors combine an electronically commutated motor design with a specific fan and control interface. Confirm supply type, control signal, speed range, rotation, mounting, shaft or impeller interface and the original motor label before specifying a replacement.

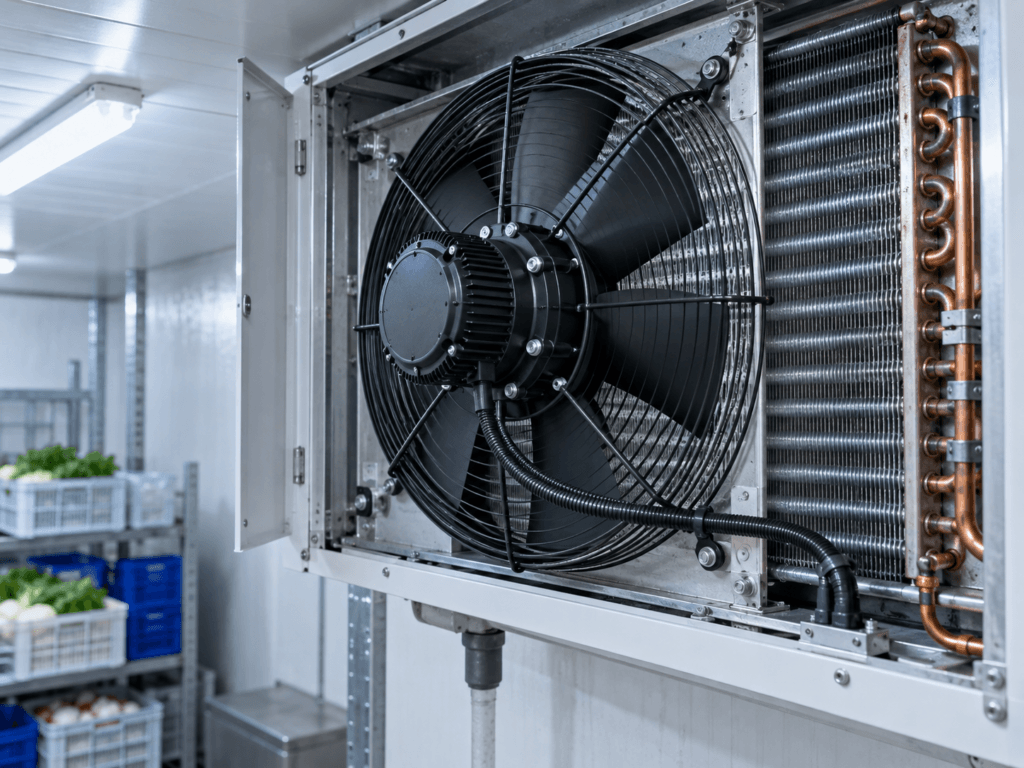

EC motors are used where refrigeration fans or air coolers require a coordinated motor and control arrangement. Use the application view to review the fan duty, controller connection, airflow direction and available space, then provide the wiring and operating requirements for matching.
EC Motor Selection Questions
Fan load and operating point
Check: Share fan geometry, airflow or pressure requirement, rotation and duty cycle
Consider: Ensures the motor is considered with its actual load.
Mounting and environment
Check: Provide fixing points, shaft or hub, envelope, air direction, temperature and moisture context
Consider: Confirms mechanical and application fit.
EC Motor Technology and Interface
Electronically commutated motor
The category identifies EC motor technology; confirm the exact input, control, speed and protection requirements from current data.
Fan assembly interface
Review the EC motor with fan geometry, mounting, rotation, air direction and available clearance.
Technology and construction
EC describes motor and control technology; it may coexist with a mechanical construction such as external rotor. Confirm both dimensions and control details.
EC Motor RFQ Parameters
| Parameter | Information to provide | Why it matters |
|---|---|---|
| Input power | Voltage, frequency, phase, connector and lead details | Confirms electrical compatibility. |
| Control and speed | Signal type, speed requirement, control range and rotation | Identifies the control interface. |
| Fan and load | Fan diameter or wheel, airflow or pressure, duty cycle and operating point | Supports motor-load review. |
| Mechanical fit | Mounting, shaft or hub, envelope, air direction and clearance | Confirms installation. |
| Environment and reference | Application, temperature or moisture context, existing motor, drawing and quantity | Supports replacement and quotation. |
EC, Shaded Pole and External Rotor Choices
| Choice area | What changes | Confirm before choosing |
|---|---|---|
| EC motor | Electronically commutated technology with its own input and control requirements | Confirm supply, signal, speed, mounting and fan compatibility. |
| Shaded pole motor | A compact motor direction evaluated through supply, frequency, rotation and fan load | Confirm fixed-speed requirements, wiring, mounting and application. |
| External rotor motor | A mechanical construction direction affecting fan and mounting arrangement | Confirm whether the requested assembly also uses EC technology; the labels can overlap. |
EC Motor Applications
Refrigeration fans
EC motor input and control must match the fan, coil, airflow and available space
Confirm: Provide fan geometry, supply, control, rotation and mounting.
Air coolers
The motor is reviewed with air throw, room duty, fan arrangement and service access
Confirm: Share cooler layout, fan duty, control and environment.
Commercial cooling systems
Control integration and electrical compatibility affect the complete assembly
Confirm: Provide system drawing, signal, wiring, operating condition and quantity.
EC Motor Verification Checklist
Input and control verification
Match voltage, frequency, signal, connector, speed and rotation to the approved reference.
Mechanical fit check
Confirm fan geometry, mounting, shaft or hub, envelope, air direction and clearances.
Functional acceptance
Agree the applicable control, running, rotation, electrical or other project-specific tests before release.
Information to Send for an EC Motor RFQ
Existing product reference
Send the product URL or model, nameplate, drawing, photos and wiring
Why it matters: Provides a traceable starting point.
Electrical and control
State voltage, frequency, phase, control signal, connector, speed and rotation
Why it matters: Supports interface review.
Fan and mounting
Provide fan geometry, fixing points, shaft or hub, envelope and air direction
Why it matters: Enables assembly-fit review.
Quantity and operating condition
Share application, duty, environment, quantity and inspection needs
Why it matters: Supports a realistic quotation.
EC Motor Buyer FAQ
Is an EC motor automatically compatible with an existing fan?
No. Confirm input, control, speed, rotation, mounting, fan geometry, load and envelope.
Can EC and external rotor describe the same product?
They can describe different aspects of one motor, so ask for the exact mechanical construction and control data.
What should I send for an EC motor replacement?
Provide the old model, supply, control signal, connector, fan geometry, mounting, rotation, operating condition and quantity.
Do I need to specify the control signal?
Yes. The signal and speed requirement are central to checking the EC interface.
Can Domi review a custom EC fan application?
Send the fan, application, electrical and mechanical requirements so the configuration can be reviewed before quotation.
EC Motor Resources
Electronically Commutated Motor
Use the published product page as a starting reference, then confirm current data.
Cold Room Evaporator Fan Selection
Use it to organize fan, motor, control and RFQ inputs.
Fan Coil Unit Selection
Use it to review fan, coil, airflow and controls as an assembly.
BUYER REVIEW CHECKLIST
Prepare the Details Behind a Useful Quote
A clear RFQ helps the team review the right category, construction and interface. Use the checklist below as a practical starting point, then provide the category-specific details shown above.
Application
State the equipment, target condition, ambient environment and expected duty.
Geometry & Interfaces
Share dimensions, mounting points, connections, airflow direction and service clearances.
Electrical & Controls
For fans and motors, include voltage, frequency, control signal, rotation and wiring.
Reference & Quantity
Attach the old part, drawing or sample and state quantity, revision and documentation needs.
TECHNICAL RFQ SUPPORT
Discuss Your Refrigeration Requirements
Share your application, drawings and operating requirements so our team can review the details of your project.
