Fan duty and geometry
Check: Provide fan diameter or wheel, airflow or pressure requirement, duty cycle and rotation
Consider: Connects the motor review to the real load.
REFRIGERATION COMPONENTS
External Rotor Motors
External rotor motors engineered for refrigeration fans, air coolers, condensers and HVAC applications.
External rotor motors are evaluated as part of a refrigeration fan or air-cooler assembly, with mechanical construction, fan geometry, electrical input and control requirements considered together. This category is for buyers who need an external rotor direction for refrigeration fans, air coolers, condensers or HVAC applications. Provide the fan, mounting, envelope, airflow or pressure requirement, voltage, frequency, control method, rotation, environment and existing reference. External rotor construction should not be treated as a substitute for a complete motor specification.
Products
- External Rotor Motors
High efficiency & Low noise Axial Fan
Product and Application Visuals

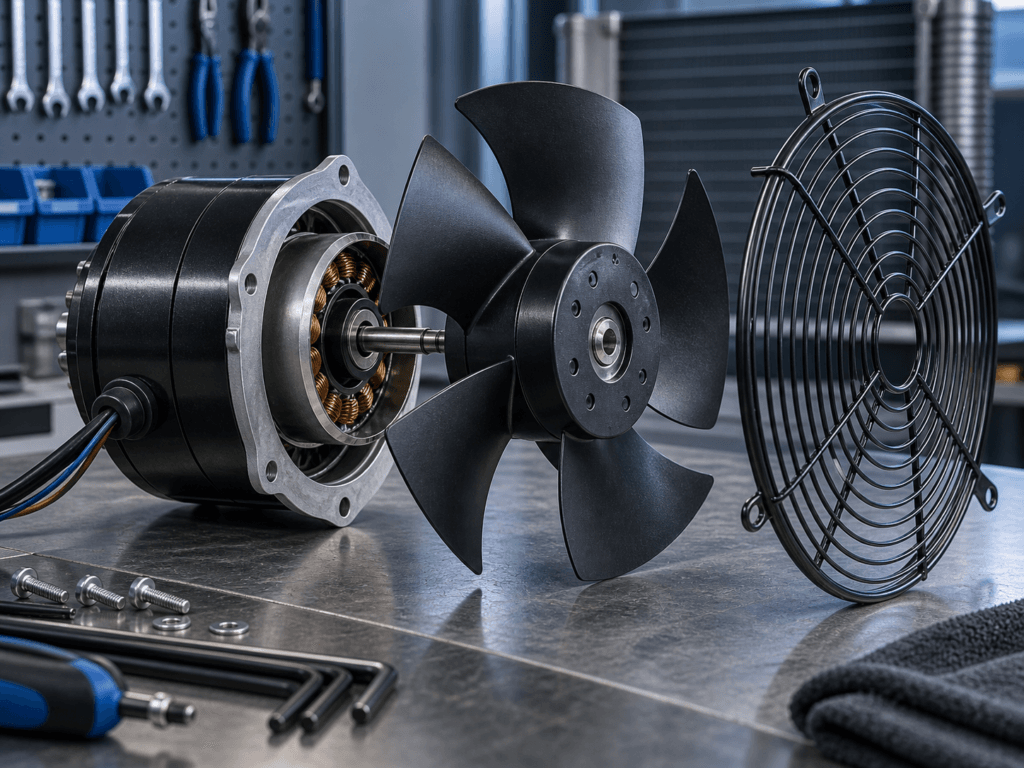

An external rotor motor places the rotating assembly around the stator and is commonly evaluated with the fan, mounting and airflow arrangement as one system. Confirm voltage, speed, rotation, impeller or fan interface, mounting dimensions and control requirements.

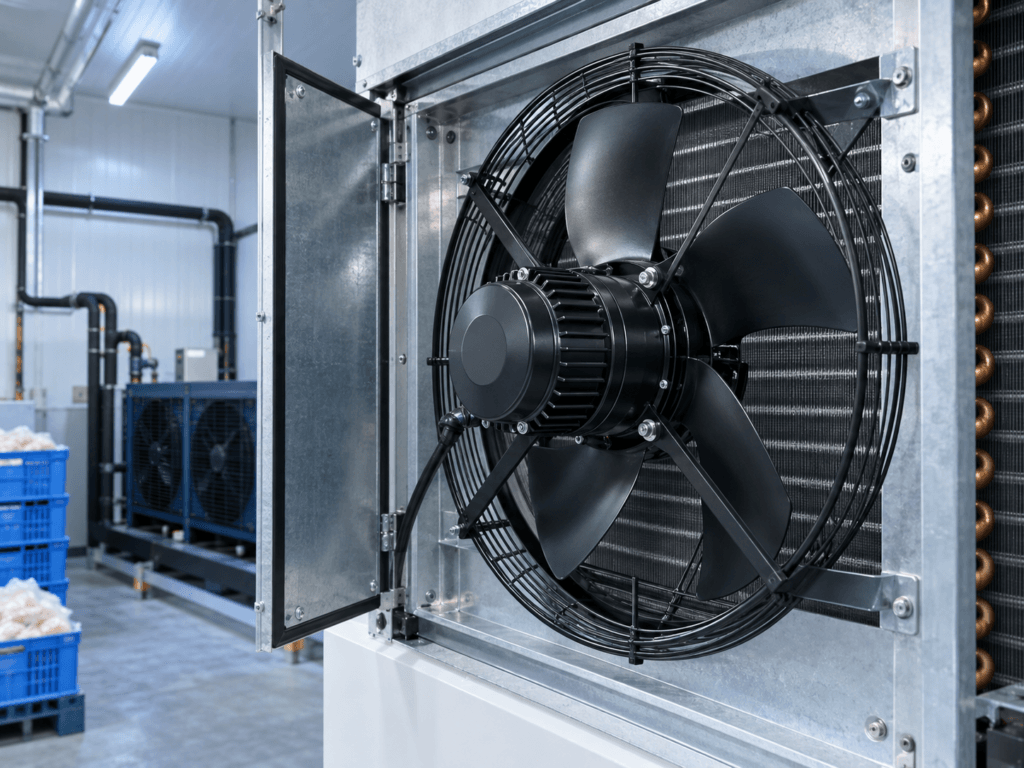

External rotor motors can be integrated into air coolers, condensers and HVAC or refrigeration fan assemblies. The application view helps buyers check fan diameter, installation depth, airflow direction, service access and the actual electrical duty.
External Rotor Motor Selection Questions
Electrical and control interface
Check: Share voltage, frequency, phase, control signal, speed requirement and protection details
Consider: Confirms compatibility.
Mounting and envelope
Check: Provide fixing points, shaft or hub, surrounding clearance, air direction and service access
Consider: Confirms the external rotor assembly can fit.
External Rotor Motor Structure and Interface
External rotor construction
The category identifies an external rotor motor direction; confirm the exact rotor, stator, fan, mounting and enclosure arrangement from current product data.
Fan integration
External rotor motors are often evaluated with the fan or air-cooler assembly, so provide fan geometry, air path, rotation and clearance.
Technology overlap
External rotor describes mechanical construction and may coexist with EC technology; confirm control and supply requirements for the exact model.
External rotor motor selection
Confirm the fan assembly, installation envelope, rotation, control requirements and mechanical interface
Why it matters: External rotor describes a construction direction and does not replace the complete motor specification.
External Rotor Motor RFQ Parameters
| Parameter | Information to provide | Why it matters |
|---|---|---|
| Application | Refrigeration fan, air cooler, condenser, evaporator or HVAC equipment | Establishes the assembly context. |
| Fan duty | Fan size, airflow or pressure, rotation and duty cycle | Supports motor-load review. |
| Electrical and control | Voltage, frequency, phase, signal, speed and protection requirement | Confirms interface. |
| Mechanical interface | Mounting, fan or wheel connection, envelope, clearance and air direction | Confirms fit. |
| Environment and reference | Temperature or moisture context, old motor, drawing, photos and quantity | Supports replacement and quotation review. |
External Rotor and EC Motor Comparison
| Choice area | What changes | Confirm before choosing |
|---|---|---|
| External rotor motor | Mechanical rotor construction affects the fan and mounting arrangement | Confirm geometry, mounting, supply, rotation and clearance. |
| EC motor | Motor and control technology adds input and control requirements | Confirm signal, speed, supply, mounting and fan compatibility. |
| Combined configuration | External rotor and EC are not necessarily opposite categories | Ask for the exact motor architecture and control data before comparing. |
External Rotor Motor Applications
Air coolers
The motor must align with fan wheel, room airflow, mounting and service access
Confirm: Provide air path, fan size, duty, supply and clearance.
Condenser fans
Heat-rejection duty and ambient environment shape the assembly review
Confirm: Share condenser layout, fan geometry, motor input and mounting.
HVAC and refrigeration equipment
Electrical control, fan arrangement and enclosure need to fit the complete unit
Confirm: Provide system drawing, airflow, control and quantity data.
External Rotor Motor Verification Checklist
Motor architecture confirmation
Confirm external rotor construction, fan integration, electrical input, control and mounting details.
Assembly fit check
Match fan geometry, rotation, fixing points, envelope, air direction and clearance.
Functional acceptance
Agree the applicable running, rotation, noise, electrical or other project-specific tests before release.
Information to Send for an External Rotor Motor RFQ
Fan and equipment reference
Send the fan or air-cooler model, photos, drawing and application
Why it matters: Provides assembly context.
Duty and environment
Provide airflow or pressure, operating condition, ambient, duty cycle and rotation
Why it matters: Supports the motor-load review.
Electrical and mounting
State voltage, frequency, control, fixing points, fan connection, envelope and clearances
Why it matters: Confirms compatibility and fit.
Quantity and documentation
Share quantity, drawing revision and inspection requirements
Why it matters: Supports quotation detail.
External Rotor Motor Buyer FAQ
Is external rotor a complete motor specification?
No. It describes a mechanical construction direction; supply, control, speed, fan geometry, mounting and environment still need to be confirmed.
Can an external rotor motor be EC?
It can be possible for the two descriptions to coexist, so request the exact architecture and control data rather than treating them as mutually exclusive.
What should I send for an air-cooler motor?
Provide fan geometry, airflow or pressure, mounting, rotation, supply, control, environment and the existing reference.
How do I match a replacement external rotor assembly?
Send photos or drawings with fan, fixing, envelope, air direction, wiring and quantity details.
What should be approved before production?
Approve the motor and fan interface, electrical data, mounting and applicable functional checks.
External Rotor Motor Resources
Industrial Air Cooler Air Throw
Use it to connect fan and motor selection with room coverage.
Fan Coil Unit Selection
Use it to review fan, coil, airflow and control interfaces.
Cold Room Evaporator Fan Selection
Use it to organize motor and fan duty inputs.
BUYER REVIEW CHECKLIST
Prepare the Details Behind a Useful Quote
A clear RFQ helps the team review the right category, construction and interface. Use the checklist below as a practical starting point, then provide the category-specific details shown above.
Application
State the equipment, target condition, ambient environment and expected duty.
Geometry & Interfaces
Share dimensions, mounting points, connections, airflow direction and service clearances.
Electrical & Controls
For fans and motors, include voltage, frequency, control signal, rotation and wiring.
Reference & Quantity
Attach the old part, drawing or sample and state quantity, revision and documentation needs.
