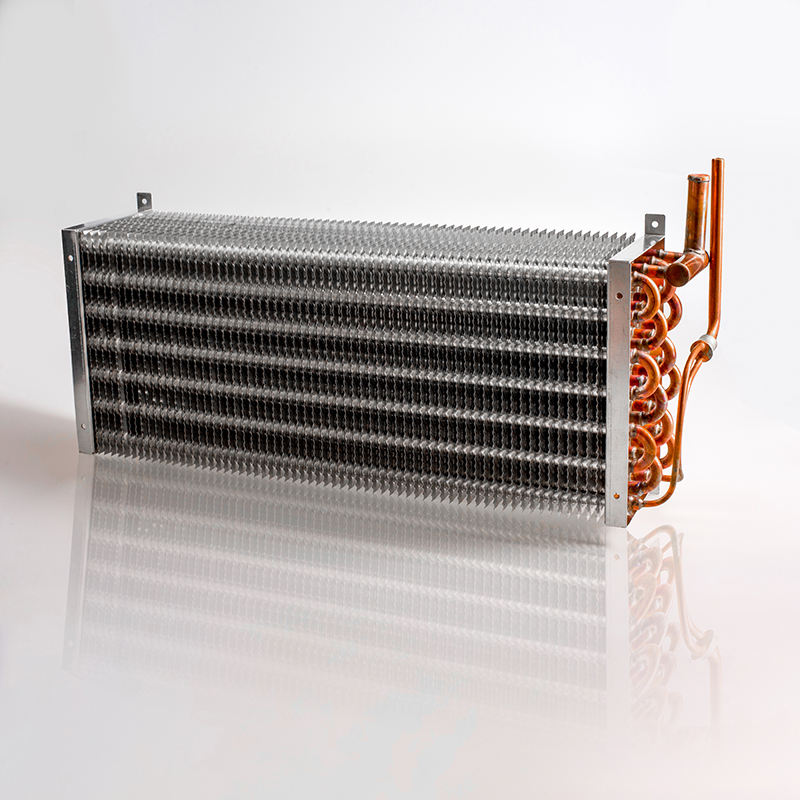

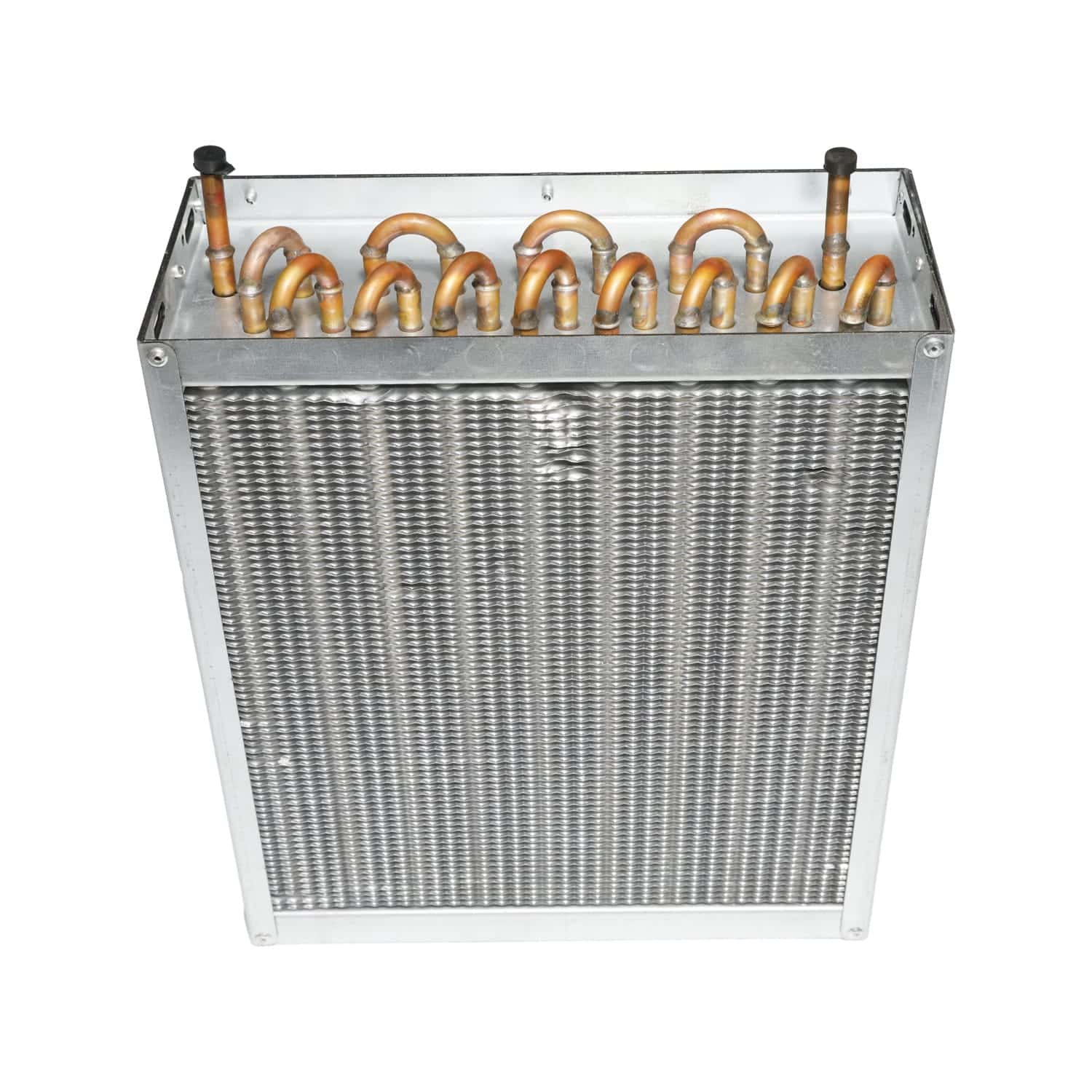

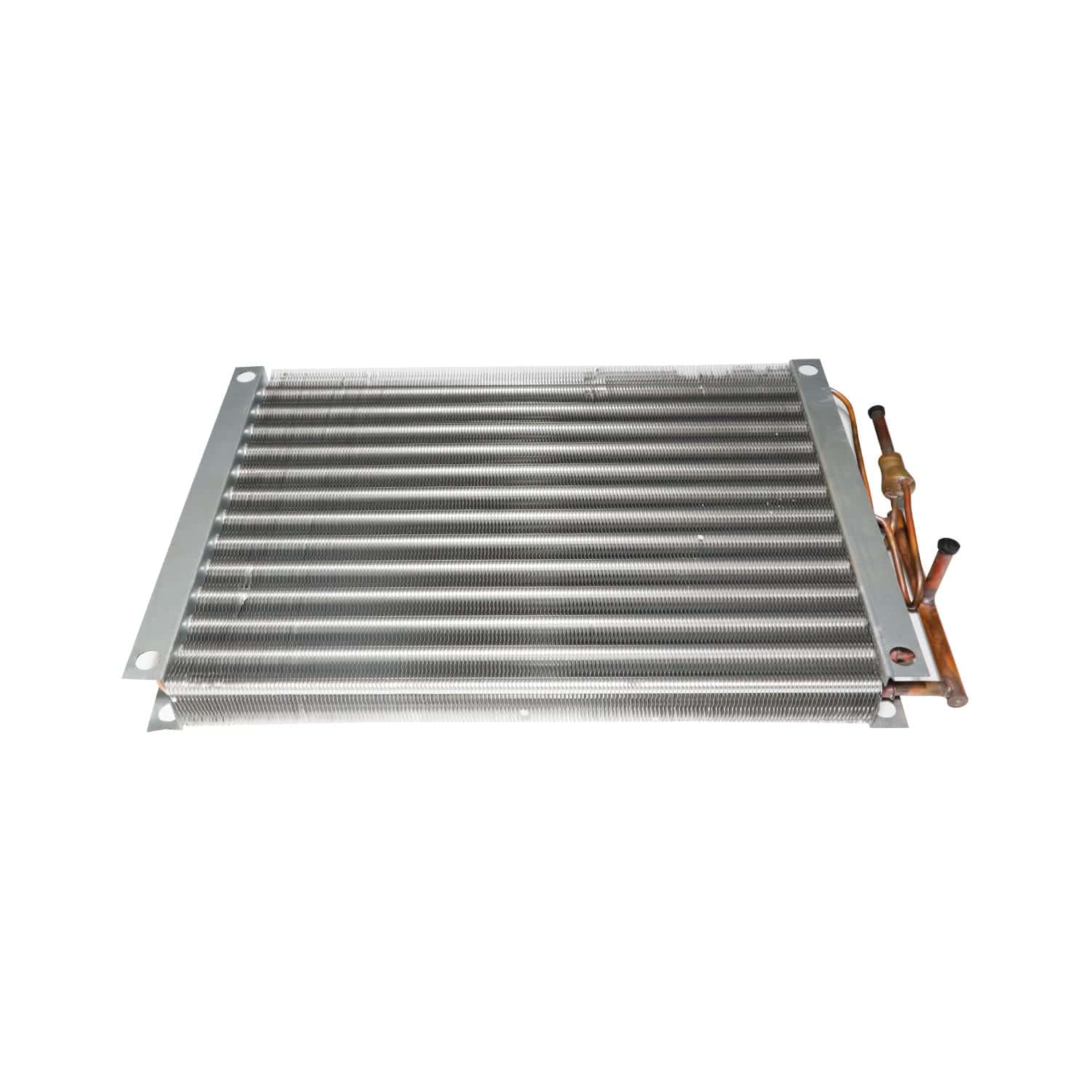

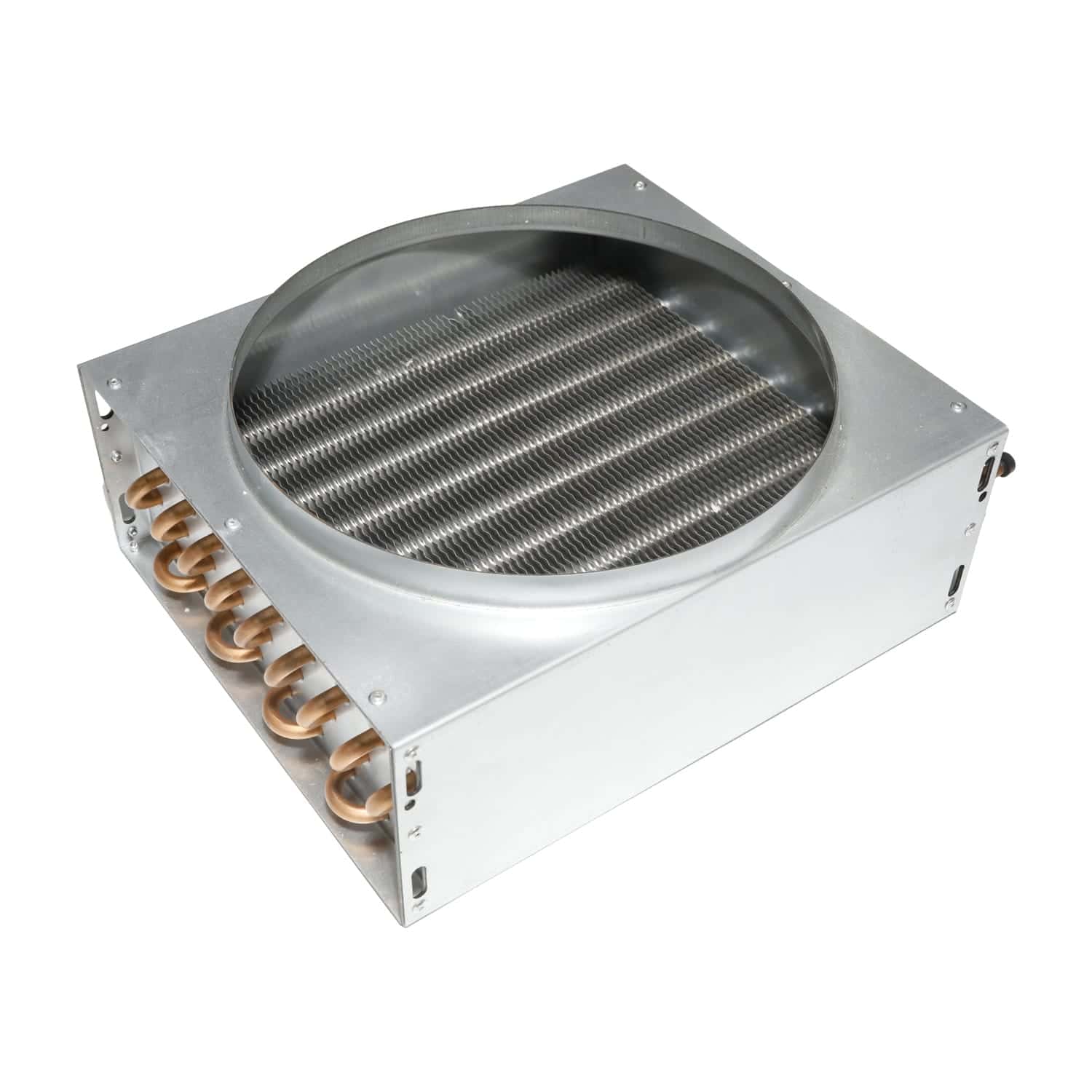

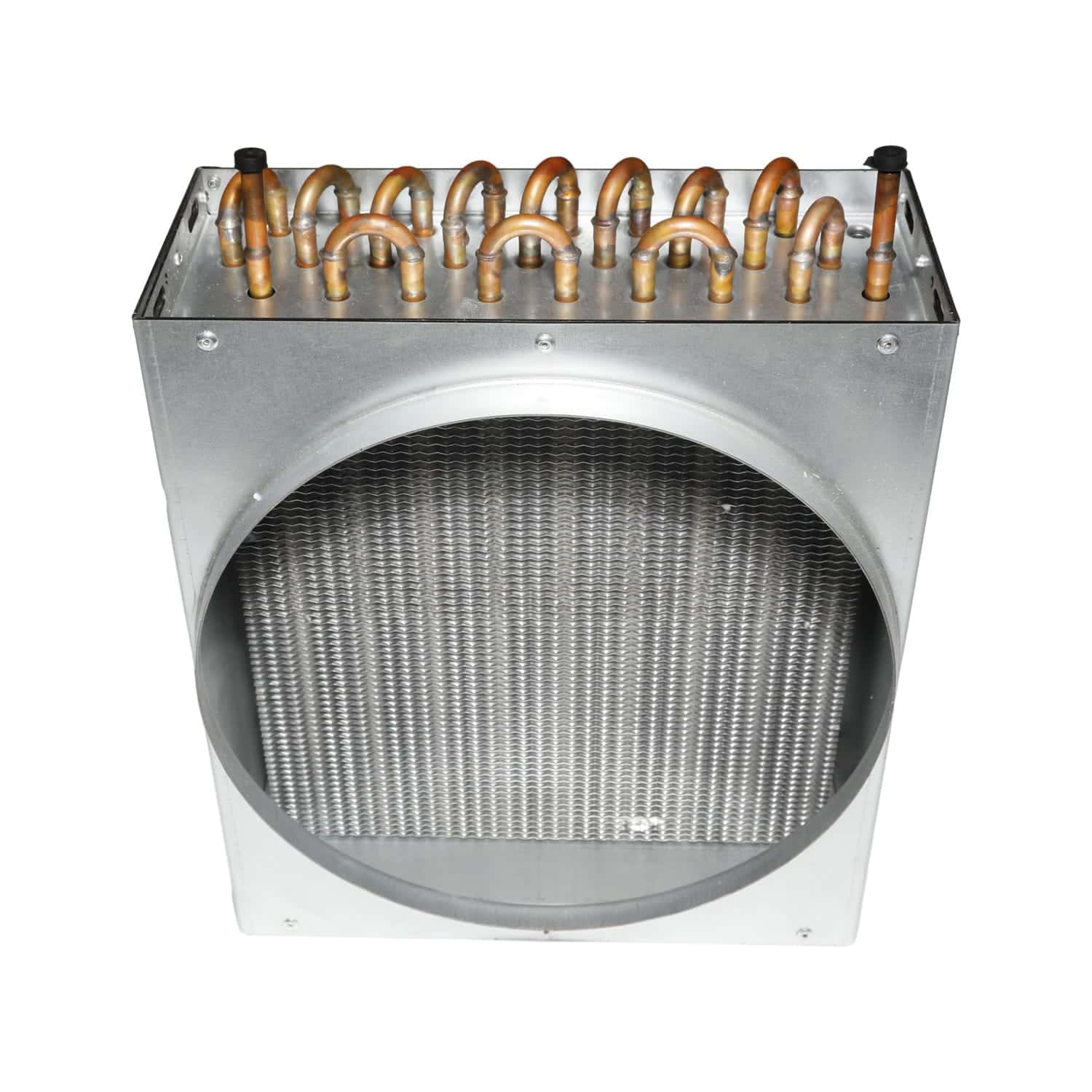

Copper Tube Aluminium Fin Condenser Evaporator
99.9% TP2 Copper
After special soft annealing treatment,it is more flexible and easy to process.
The Fins
Use high-quality aluminum alloy,Thin and uniform structure, excellent thermal conductivity, effectively expanding heat exchange area to enhance cooling efficiency.
The Welding Technology
Firm and seamless joint between copper tubes,ensuring minimal heat loss at connection points.High welding strength, resisting vibration during refrigerator and freezer operation, extending service life.
The Protective Cover
The surface of the condenser has been cleaned when leaving the factory.
Dust-proof and moisture-proof, keeping the copper tubes and fins in optimal working condition before installation.
Product Details
Domi Refrigeration supplies AC Condenser for OEM buyers who need a drawing-driven component, stable repeat production, and a supplier that can discuss size, material, testing, and packaging before release.
For coil projects, the safest starting point is the old sample, a cabinet sketch, or an approved drawing. That lets the supplier confirm face area, tube pitch, row count, connection position, and mounting pattern before quotation.
Where this product fits
This product is used wherever the system needs efficient heat rejection or heat absorption inside a compact footprint.
- OEM air conditioners
- compact cooling equipment
- replacement condenser projects
Materials and build options
Copper tube and aluminum fin are common for AC condenser builds. Galvanized frames, coated headers, and corrosion-resistant surface treatment can be discussed for projects exposed to humidity or coastal air.
Face area, row count, coil depth, tube spacing, connection orientation, and overall bracket geometry are normally built to the approved drawing. Non-standard sizes should be confirmed before production.
Specification guidance
| Item | Guidance |
|---|---|
| Main materials | Copper tube / aluminum fin is the common starting point, with coated frame options where corrosion resistance matters. |
| Dimensions | Built to drawing. Confirm face area, depth, tube pitch, connections, and mounting holes before approval. |
| Refrigerant / medium | Common HVAC projects may involve R32 or R410A, but final refrigerant compatibility must match the approved system design, tube material, and safety requirements. |
| Pressure / electrical note | Working pressure and test pressure must be confirmed from the final design package. Do not release a pressure-bearing coil until refrigerant, wall thickness, and safety margin are approved. |
| Testing | Typical checks include incoming material inspection, fin and tube dimensional review, visual brazing or weld inspection, leak testing, and final packing verification before shipment. |
| MOQ | Sample and batch MOQ should be confirmed by model and drawing. For new projects, low-volume sample review is usually the safest starting point. |
| Lead time | Lead time depends on drawing approval, material availability, quantity, and surface treatment requirements. |
99.9% TP2 Copper
After special soft annealing treatment,it is more flexible and easy to process.
The Fins
Use high-quality aluminum alloy,Thin and uniform structure, excellent thermal conductivity, effectively expanding heat exchange area to enhance cooling efficiency.

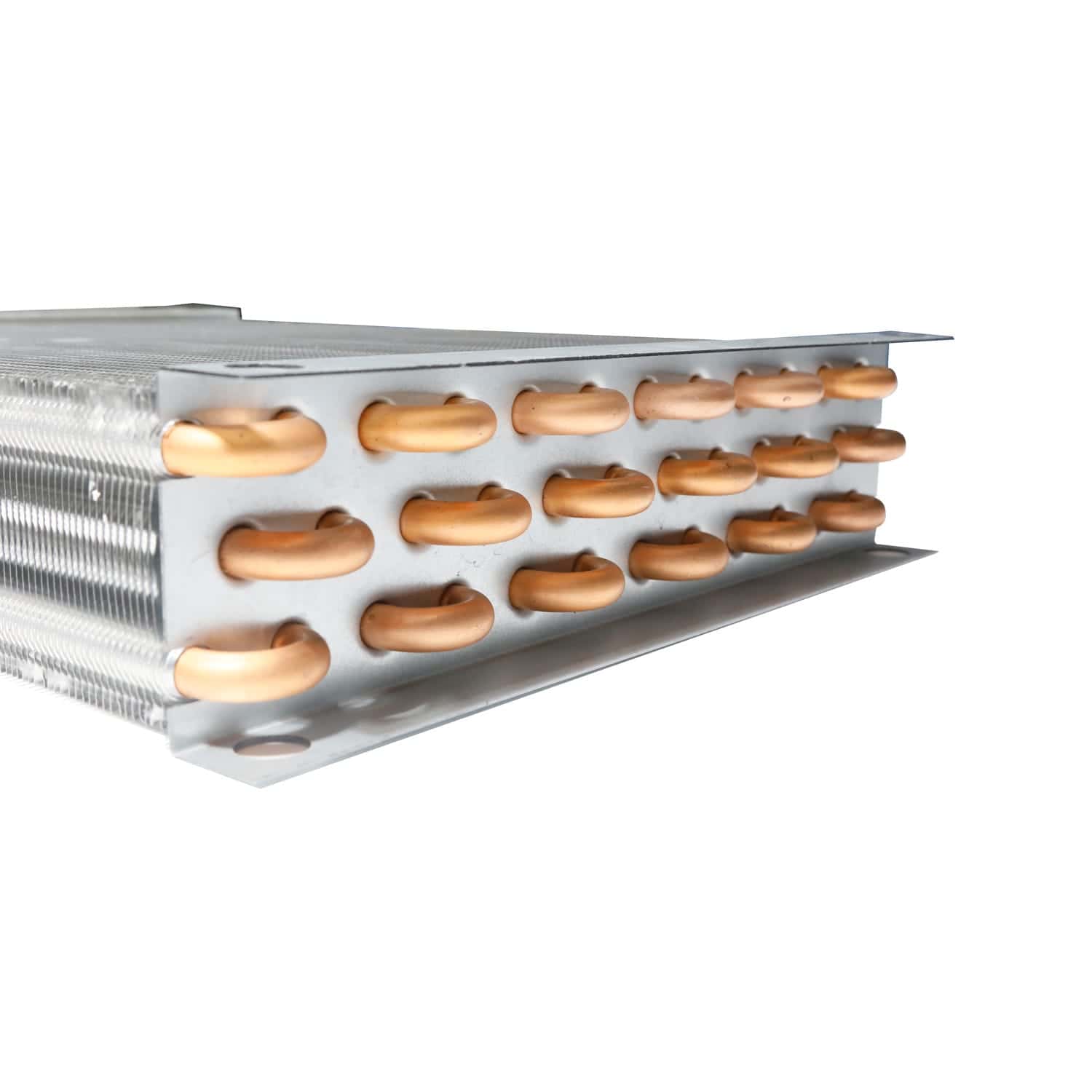

The Welding Technology
Firm and seamless joint between copper tubes,ensuring minimal heat loss at connection points.High welding strength, resisting vibration during refrigerator and freezer operation, extending service life.
The Protective Cover
The surface of the condenser has been cleaned when leaving the factory.
Dust-proof and moisture-proof, keeping the copper tubes and fins in optimal working condition before installation.
| MODEL | CAPACITY | AREA | FAN | CONNECTDIA(MM) | OVERALL(MM) | INSTALLSIZE | |||||
| KW | m² | INPUT(W) | DIA(MM) | VOLTAGE(V) | AIR(m³/H) | INLET | OUTLET | A*B*C | D(MM) | E(MM) | |
| CD-2 | 0.6 | 2 | 1*35 | 200 | 410 | 220 | ø10 | ø10 | 320*100*230 | 270 | 65 |
| CD-3.4 | 1 | 3.4 | 1*35 | 200 | 410 | 220 | ∅12 | ∅12 | 320*100*230 | 270 | 65 |
| CD-4.4 | 1.3 | 4.4 | 1*60 | 250 | 750 | 220 | ∅12 | ∅12 | 370*100*280 | 325 | 65 |
| CD-5.4 | 1.6 | 5.4 | 1*75 | 300 | 1350 | 220 | ∅12 | ∅12 | 440*100*330 | 392 | 65 |
| CD-7 | 2 | 7 | 1*90 | 300 | 1350 | 220 | ∅12 | ∅12 | 440*135*330 | 390 | 90 |
| CD-8.4 | 2.3 | 8.4 | 1*150 | 350 | 3100 | 380 | ∅16 | ∅12 | 500*130*430 | 455 | 95 |
| CD-11.5 | 3.5 | 11.5 | 1*150 | 350 | 3100 | 380 | ∅16 | ∅12 | 480*180*430 | 430 | 145 |
| CD-15 | 4.4 | 15 | 1*150 | 350 | 3100 | 380 | ∅16 | ∅12 | 550*180*480 | 490 | 145 |
| CD-18 | 5.2 | 18 | 1*180 | 400 | 4500 | 380 | ∅19 | ∅12 | 590*180*530 | 530 | 140 |
| CD-22 | 6.4 | 22 | 1*180 | 400 | 4500 | 380 | ∅19 | ∅12 | 590*180*530 | 530 | 140 |
| CD-25 | 8.1 | 25 | 1*180 | 400 | 4500 | 380 | ∅19 | ∅16 | 750*180*680 | 660 | 150 |
| CD-21 | 6.1 | 21 | 2*90 | 300 | 2700 | 220 | ∅16 | ∅12 | 840*180*430 | 790 | 140 |
| CD-28 | 8.2 | 28 | 2*150 | 350 | 6200 | 380 | ∅19 | ∅16 | 900*180*430 | 840 | 145 |
| CD-33 | 11.2 | 33 | 2*150 | 350 | 6200 | 380 | ∅19 | ∅16 | 900*200*480 | 840 | 130 |
| CD-36 | 12.6 | 36 | 2*180 | 400 | 9000 | 380 | ∅16 | ∅12 | 1015*180*580 | 950 | 150 |
| CD-43 | 14.8 | 43 | 2*180 | 400 | 9000 | 380 | ∅16 | ∅12 | 1015*180*680 | 950 | 150 |
| CD-48 | 17.5 | 48 | 2*180 | 400 | 9000 | 380 | ∅16 | ∅12 | 1250*200*630 | 1172 | 120 |
| CD-55 | 19.2 | 55 | 2*180 | 400 | 9000 | 380 | ∅22 | ∅12 | 1250*200*730 | 1172 | 140 |
| CD-70 | 20.5 | 70 | 4*150 | 350 | 12400 | 380 | ∅22 | ∅16 | 1250*200*830 | 1172 | 120 |
| CD-80 | 24.4 | 80 | 4*150 | 350 | 12400 | 380 | ∅28 | ∅16 | 1250*200*930 | 1172 | 120 |
| CD-100 | 29.6 | 100 | 4*180 | 400 | 18000 | 380 | ∅28 | ∅16 | 1250*200*1130 | 1172 | 120 |
| CD-130 | 38.2 | 130 | 4*180 | 400 | 18000 | 380 | ∅28 | ∅22 | 1250*200*1330 | 1172 | 120 |
| CD-150 | 47.2 | 150 | 4*180 | 400 | 18000 | 380 | ∅28 | ∅22 | 1250*200*1330 | 1240 | 200 |
| CD-180 | 54 | 180 | 4*180 | 400 | 18000 | 380 | ∅28 | ∅22 | 1250*270*1330 | 1240 | 200 |
Testing and release checks
Typical checks include incoming material inspection, fin and tube dimensional review, visual brazing or weld inspection, leak testing, and final packing verification before shipment.
For repeat OEM orders, keep the approved drawing, inspection notes, and connection orientation on file so the same unit can be reordered without guesswork.
FAQ
Can you confirm the size from a sample or photo?
Yes. Send the old coil, cabinet sketch, or dimension sheet and the team can check whether the unit is a true match or a revised design.
How do you confirm refrigerant, pressure, or operating conditions?
Refrigerant and pressure are confirmed against the approved system design, tube material, and the intended operating environment.
What is needed for MOQ and lead time confirmation?
Share the model, quantity, drawing status, and target delivery window so MOQ and lead time can be confirmed together.
Quotation next step
Send your drawing, old sample, cabinet size, target refrigerant, and destination market for a quotation review.
