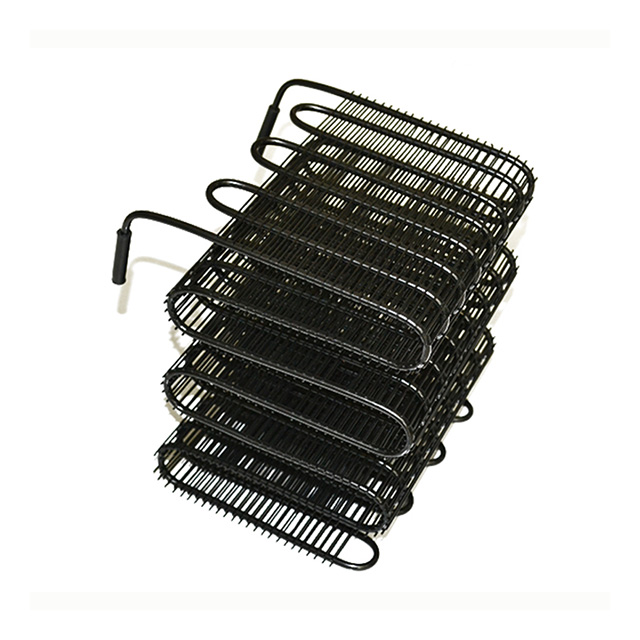

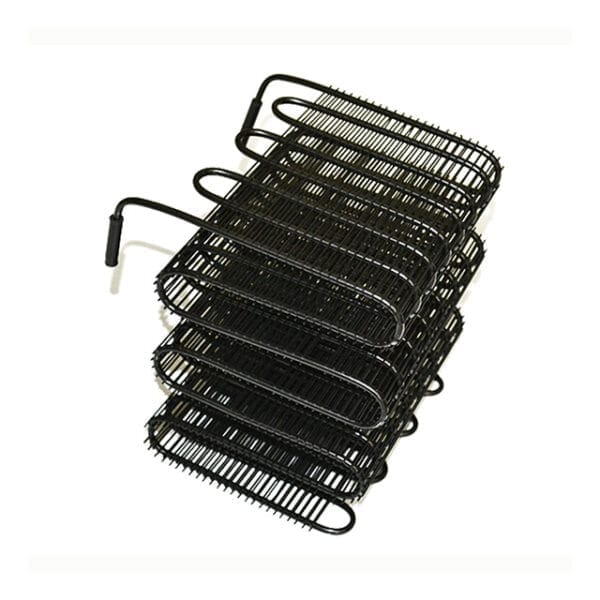

Wire Tube Condenser (Multilayer)
Wire tube condenser multilayer for OEM appliance projects. Confirm dimensions, refrigerant, pressure, testing, MOQ and lead time before ordering.
Product Details
Domi Refrigeration supplies Wire Tube Condenser (Multilayer) for OEM buyers who need a drawing-driven component, stable repeat production, and a supplier that can discuss size, material, testing, and packaging before release.
For coil projects, the safest starting point is the old sample, a cabinet sketch, or an approved drawing. That lets the supplier confirm face area, tube pitch, row count, connection position, and mounting pattern before quotation.
Where this product fits
This product is used wherever the system needs efficient heat rejection or heat absorption inside a compact footprint.
- refrigerator rear panels
- compact freezer cabinets
- cost-sensitive OEM appliance programs
Materials and build options
A multilayer wire tube condenser is usually chosen for compact cabinets that need simple structure, controlled airflow, and a cost-conscious build. Wire gauge, coating, and mounting details should follow the approved sample.
The main checks are coil width, height, layer count, tube spacing, and the fit around the back panel or cabinet frame. Use the approved drawing rather than a visual estimate.
Specification guidance
| Item | Guidance |
|---|---|
| Main materials | Wire tube structure with a protective surface finish and mounting points matched to the cabinet. |
| Dimensions | Confirm width, height, layer count, and tube spacing from the approved sample or drawing. |
| Refrigerant / medium | Common residential refrigerant families such as R600a or R290 may be used when the approved design allows it. |
| Pressure / electrical note | Pressure and safety margin must be confirmed from the appliance specification before production begins. |
| Testing | Release checks should cover geometry, coating appearance, and leak performance if the project requires it. The back-panel fit should be verified before batch approval. |
| MOQ | MOQ should be confirmed by model and annual demand. Sample matching can be discussed first if the existing part is available. |
| Lead time | Lead time depends on size, coating, and the complexity of the matching process. |
| MODEL | LENGTH (MM) | WIDTH (MM) | U-BENDSNOS | ROWS | WIRE QTY | WIRE LENGTH(MM) | |
| 480 | 450/30 | ||||||
| 1/3HP | 1150 | 480*450*430 | 12 | 24 | 126 | 108 | 1157 |
| 1/4HP | 1050 | 480*450*430 | 11 | 22 | 126 | 108 | 1057 |
| 1/5HP | 950 | 480*450*430 | 10 | 20 | 126 | 108 | 957 |
| 1/6HP | 850 | 480*450*430 | 9 | 18 | 126 | 108 | 857 |
| 1/7HP | 750 | 480*450*430 | 8 | 16 | 126 | 108 | 757 |
| 1/8HP | 650 | 480*450*430 | 7 | 14 | 126 | 108 | 657 |
| 1/9HP | 550 | 480*450*430 | 6 | 12 | 126 | 108 | 557 |
| 1/10HP | 450 | 480*450*430 | 5 | 10 | 126 | 108 | 457 |
| 1/12HP | 350 | 480*450*430 | 4 | 8 | 126 | 108 | 357 |
Testing and release checks
Release checks should cover geometry, coating appearance, and leak performance if the project requires it. The back-panel fit should be verified before batch approval.
Because wire tube products often repeat over long production runs, keep the approved sample and drawing together for future reorders.
FAQ
Can you confirm the size from a sample or photo?
Yes. A photo of the installed condenser or the old part itself is usually enough for the first check.
How do you confirm refrigerant, pressure, or operating conditions?
The final rating follows the appliance design and the approved refrigerant class.
What is needed for MOQ and lead time confirmation?
Quantity, sample status, and the expected reorder pattern are the main MOQ and timing inputs.
Quotation next step
Please send the old sample, cabinet size, and refrigerant target so the pricing review can start quickly.
