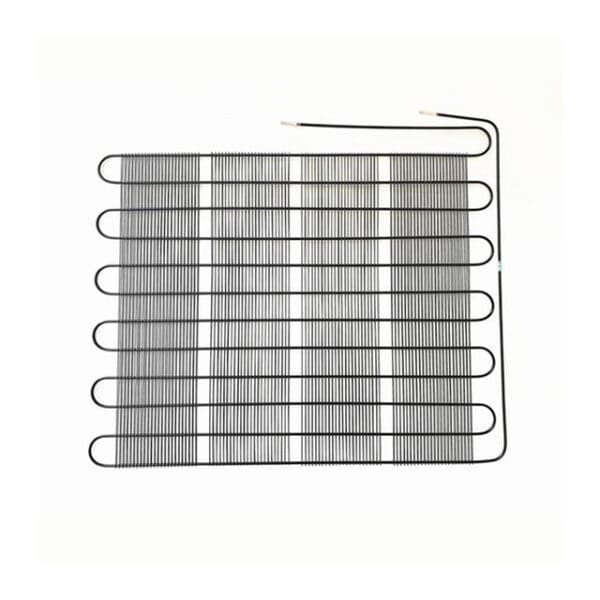

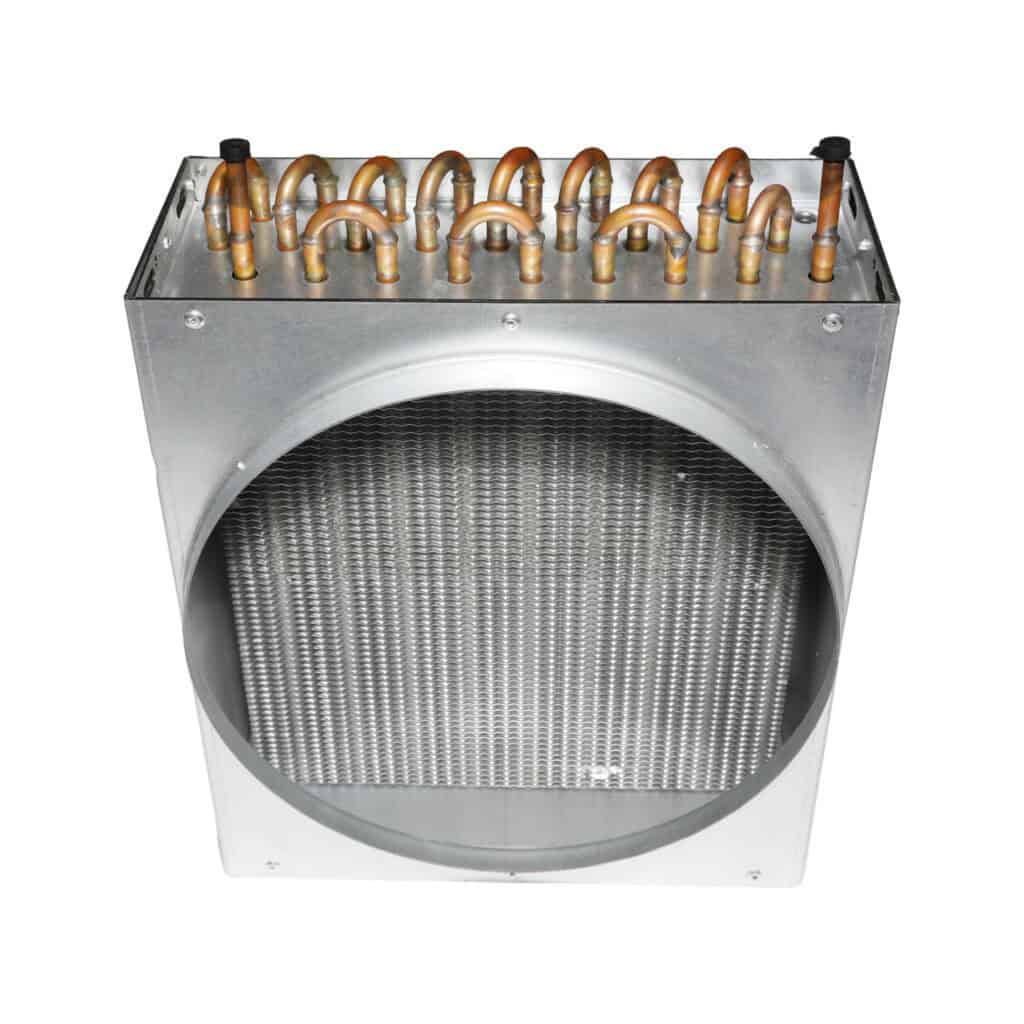

Wire Tube Condenser (single layer)
Wire tube condenser single layer for OEM refrigerator units. Confirm dimensions, refrigerant compatibility, pressure, testing, MOQ and lead time.
Product Details
Domi Refrigeration supplies Wire Tube Condenser (single layer) for OEM buyers who need a drawing-driven component, stable repeat production, and a supplier that can discuss size, material, testing, and packaging before release.
For coil projects, the safest starting point is the old sample, a cabinet sketch, or an approved drawing. That lets the supplier confirm face area, tube pitch, row count, connection position, and mounting pattern before quotation.
Where this product fits
This product is used wherever the system needs efficient heat rejection or heat absorption inside a compact footprint.
- single-door refrigerators
- small freezers
- replacement wire tube condenser projects
Materials and build options
Single-layer wire tube builds are useful when the cabinet needs a clean back-panel layout and stable airflow over a compact heat-rejection surface. Coating and tube spacing can be adjusted to suit the appliance.
Check the outer width, height, layer depth, and connection location before ordering. The safest reference is the approved sample or installation drawing.
Specification guidance
| Item | Guidance |
|---|---|
| Main materials | Wire tube layout with coating and support points tailored to the cabinet space. |
| Dimensions | Confirm width, height, depth, and connection location from the approved drawing. |
| Refrigerant / medium | Residential appliance families may use refrigerants such as R600a or R290 when the design and safety package approve them. |
| Pressure / electrical note | Pressure class should be confirmed for the final appliance model rather than assumed from a previous product. |
| Testing | Check the coil geometry, finish, and leak condition before packing. Repeat production depends on keeping the approved layout stable from batch to batch. |
| MOQ | MOQ is normally linked to the model and order cycle. Sample review can be handled first if the cabinet photo is available. |
| Lead time | Lead time depends on the fit review, coating requirement, and order volume. |
| MODEL | LENGTH (MM) | WIDTH (MM) | U-BENDSNOS | ROWS | WIRE QTY | WIRE LENGTH(MM) | |
| 480 | 450/30 | ||||||
| 1/3HP | 1150 | 480*450*430 | 12 | 24 | 126 | 108 | 1157 |
| 1/4HP | 1050 | 480*450*430 | 11 | 22 | 126 | 108 | 1057 |
| 1/5HP | 950 | 480*450*430 | 10 | 20 | 126 | 108 | 957 |
| 1/6HP | 850 | 480*450*430 | 9 | 18 | 126 | 108 | 857 |
| 1/7HP | 750 | 480*450*430 | 8 | 16 | 126 | 108 | 757 |
| 1/8HP | 650 | 480*450*430 | 7 | 14 | 126 | 108 | 657 |
| 1/9HP | 550 | 480*450*430 | 6 | 12 | 126 | 108 | 557 |
| 1/10HP | 450 | 480*450*430 | 5 | 10 | 126 | 108 | 457 |
| 1/12HP | 350 | 480*450*430 | 4 | 8 | 126 | 108 | 357 |
Testing and release checks
Check the coil geometry, finish, and leak condition before packing. Repeat production depends on keeping the approved layout stable from batch to batch.
If the condenser is a direct replacement, compare the old and new parts side by side before releasing the batch.
FAQ
Can you confirm the size from a sample or photo?
Yes. A sample, a nameplate, or a field photo can support the first matching step.
How do you confirm refrigerant, pressure, or operating conditions?
Refrigerant and pressure are confirmed from the approved design and appliance safety requirements.
What is needed for MOQ and lead time confirmation?
Quantity, sample condition, and the required delivery window are the main inputs for MOQ and lead time.
Quotation next step
Send the product photo, cabinet size, and target refrigerant so the technical quotation can be matched to the real unit.
