This guide is written for engineers, procurement managers, distributors and project owners who need to turn galvanic corrosion into a reviewable industrial refrigeration coil requirement. The search term is broad, but the buying decision is specific: identify the component role, the operating envelope, the material interfaces, the expected evidence and the installation constraints before a supplier is asked to commit to a design.
Domi’s industrial refrigeration coils page is the commercial starting point for custom evaporator coils, condenser coils, heat exchangers and replacement review. This article stays focused on the engineering questions around galvanic corrosion. It does not replace the responsible engineer’s calculations, code review, site safety procedure or commissioning plan.
How to turn the topic into a coil specification
The phrase galvanic corrosion is useful only when it is connected to the equipment duty, the refrigerant or secondary fluid, the available envelope, and an acceptance method. A buyer may arrive with a broad search term, but a quotation needs a defined operating point. Start by naming the equipment role, the entering and leaving conditions, the required capacity, the pressure range, and the consequence of a performance shortfall. That short list gives an engineering team something to review instead of asking it to guess what the request means.
For an industrial refrigeration coil project, galvanic corrosion should therefore be treated as a decision path rather than a product label. The path should identify the heat-transfer surface, the circuit arrangement, the material interfaces, the airflow or fluid flow, and the maintenance access. If one of these items is not known, mark it as open for supplier proposal. An explicit unknown is safer than an undocumented assumption that later becomes a drawing change, a test failure, or an installation problem.
Operating conditions and boundary data
Any serious discussion of galvanic corrosion begins with boundary data. Record the design ambient or room condition, fluid temperatures, target approach temperature, design pressure, allowable pressure drop, flow range, operating mode, defrost or off-cycle behavior, and the expected duty profile. For a system that cycles or sees seasonal changes, one nominal point is not enough. Provide the normal point, the worst credible point, and the condition that controls the safety or compliance review.
Keep measured data separate from calculated data. A drawing may show nominal dimensions while a commissioning report shows actual airflow, fouling, frost, or pressure drop. Both can be valuable, but they answer different questions. Label each value with its source, unit, date, tolerance, and whether it is guaranteed or preliminary. This discipline helps Domi review a replacement or custom coil without presenting an unverified performance number as a manufacturing promise.
Materials, joining and compatibility
Material selection changes more than the bill of materials. In an galvanic corrosion project it can change forming, brazing or welding, coating, inspection, corrosion exposure, pressure documentation, repair options, and packaging. List tube, fin, header, frame, bracket, gasket, coating, and fastener materials separately. State whether the material is fixed by a customer standard or open to an equivalent proposal. The supplier should be able to explain why a substitute preserves the required duty and service life.
Compatibility must be checked at interfaces, not only within individual parts. Refrigerant, brine, glycol, washdown chemistry, humidity, salt, dissimilar-metal contact, and cleaning agents may create a risk that is not visible in a dry material list. When the application is exposed to condensation or periodic cleaning, include the wet-side and dry-side environments in the RFQ. If the project needs a coating, define the protected surfaces, thickness or process requirement, repair method, and evidence required after coating.
Testing and quality evidence
A buyer asking about galvanic corrosion should define the evidence needed before approval. A leak test, pressure test, dimensional inspection, visual inspection, material certificate, thermal performance test, airflow test, or coating check may each answer a different risk. Do not write only ‘tested’ in a purchase order. Name the method, the sample quantity, the pass criteria, the report format, and how deviations are handled. This is especially important when a component is installed inside a larger refrigeration package and cannot be inspected easily after shipment.
The AHRI 410 coil performance scope can be a useful reference for defined forced-circulation air-cooling and air-heating coils, but its scope and exclusions do not automatically cover every industrial refrigeration configuration. For ammonia, CO2, glycol, brine, frosting, bare-tube, or custom heat-exchanger work, state the project-specific method. A supplier can then identify what is supported by a standard and what requires an agreed engineering test.
Safety, standards and documentation
The galvanic corrosion decision should include the safety documentation required by the installation country and the project owner. Refrigerant classification, operating pressure, relief protection, electrical or mechanical interfaces, pressure-vessel boundaries, worker exposure, and maintenance procedures may all affect the data package. The buyer should identify the governing code or customer standard before the drawing is frozen. A supplier can support document preparation, but the final regulatory responsibility belongs to the project parties that design, install, own, and operate the system.
Use official references as starting points, not as a substitute for project review. The ASHRAE standards and guidelines library explains how standards are organized, while the EPA Section 608 resource covers U.S. refrigerant-management requirements. For ammonia work, the IIAR ammonia refrigeration standards resource and OSHA ammonia refrigeration guidance are useful sources to discuss with the responsible engineer and safety team.
Cost, MOQ and lead-time variables
A request based on galvanic corrosion should separate non-recurring work from the recurring part price. Engineering review, thermal calculations, drawing updates, tooling, sample fabrication, pressure or leak tests, coatings, special packing, and documentation may not scale with the piece count. Ask the supplier to show which items are one-time, which are per sample, and which repeat at production. This makes a low-volume prototype comparable with a later production quotation and reduces the chance that a hidden setup cost is treated as a surprise.
Lead time is also a chain of activities, not one factory number. The schedule may include clarification, drawing approval, material purchasing, tooling, fabrication, inspection, report release, packaging, and freight preparation. In the RFQ, state the date needed for the first engineering sample and the date needed for repeat production. If a project can accept a standard material or a staged approval, say so. Those choices may shorten the schedule without changing the functional requirement.
Packaging, installation and service

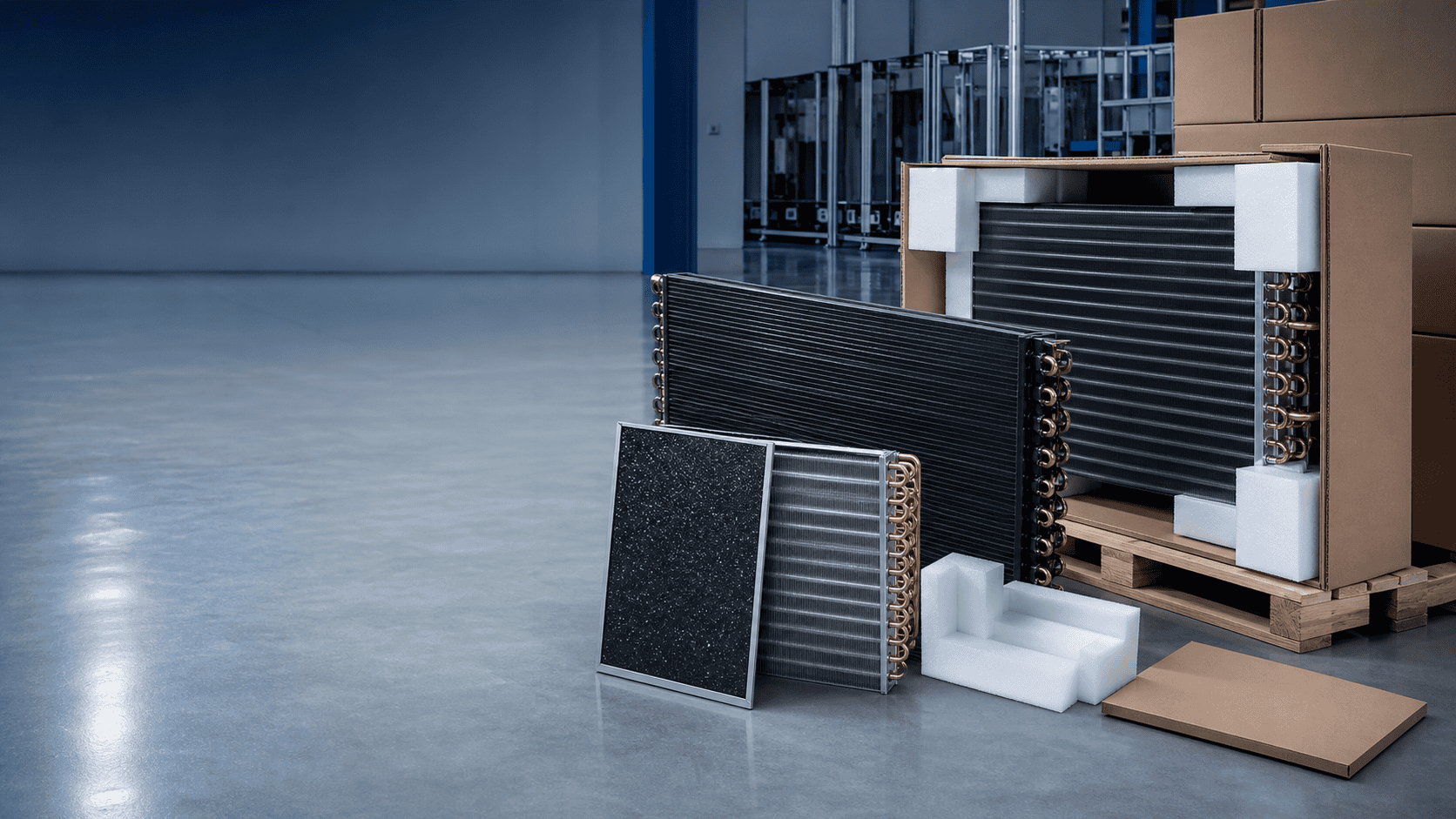

The value of an galvanic corrosion solution is lost if the coil arrives damaged or cannot be installed. Define lifting points, connection protection, fin protection, frame rigidity, pallet or crate limits, orientation, moisture protection, and the maximum package dimensions. If the route includes multiple transfers, explain the handling risk. Large coil assemblies often need temporary supports or protected headers even when the final equipment frame will carry the finished component.
Installation information should be returned to the supplier before the design is released. Provide connection orientation, service clearances, drain routing, access panels, fan or pump locations, removal path, and the parts that must be reusable from the old assembly. A replacement review should include photographs and a measured sketch, not only a nameplate. A custom design should include an installation drawing that identifies critical dimensions and the tolerances that matter in the field.
What to send for a supplier review
The fastest way to discuss galvanic corrosion with a B2B manufacturer is to send a compact package with a clear file index. Include the application description, process or room conditions, refrigerant or secondary fluid, duty target, drawing or sample photos, connection data, material requirements, inspection plan, quantity ladder, destination, and requested delivery dates. Put the open questions on the first page. This lets an engineer start with the decisions that affect feasibility rather than searching through unrelated purchase documents.
A useful package distinguishes ‘must hold’ dimensions from dimensions that may be proposed. Mark connection locations, mounting points, envelope limits, service access, and safety interfaces as critical where appropriate. For performance values, show the calculation basis and tolerance. For commercial values, show annual demand, order pattern, SKU count, packaging expectation, and whether the price should include samples or tooling. A clear boundary around each requirement is more valuable than a long document with no priorities.
How Domi can support the next step
Domi can review an galvanic corrosion project when the buyer provides enough information to connect the application to a manufacturable coil or heat-exchanger assembly. The review may cover the drawing, sample, dimensions, material interfaces, refrigerant or secondary fluid, pressure, airflow or fluid flow, inspection requirements, packaging, and quantity. The result should be a defined list of confirmed inputs, open questions, and the files needed for quotation. It should not be treated as a final design approval until the responsible project engineer accepts the proposal.
For a commercial starting point, see Domi’s industrial refrigeration coils page and its industrial refrigeration solutions page. Buyers who need a fabrication discussion can also review the custom coil fabrication capability and heat-exchanger testing laboratory. When the part is a replacement, include the old coil, the available drawings, and the installation constraints so the review can focus on fit and service continuity.
Topic-specific engineering guidance
What galvanic corrosion means for a coil
Galvanic corrosion is an electrochemical process that can occur when dissimilar conductive metals are electrically connected while an electrolyte such as condensate, wash water, salt solution or humid contamination is present. In a refrigeration coil, the risk may involve tube and fin materials, headers, frames, fasteners, brackets, drains, supports and nearby equipment. A dry material list is not enough to judge the actual environment.
A buyer searching for galvanic corrosion usually needs a practical prevention plan, not a generic definition. The plan should identify the metal pairs, the electrolyte source, the wetted area, the electrical connection, the most vulnerable surface, the cleaning cycle, and the inspection method. The supplier should state what is controlled by material selection, what is controlled by isolation or coating, and what remains dependent on installation and maintenance.
Material pairing and area ratio

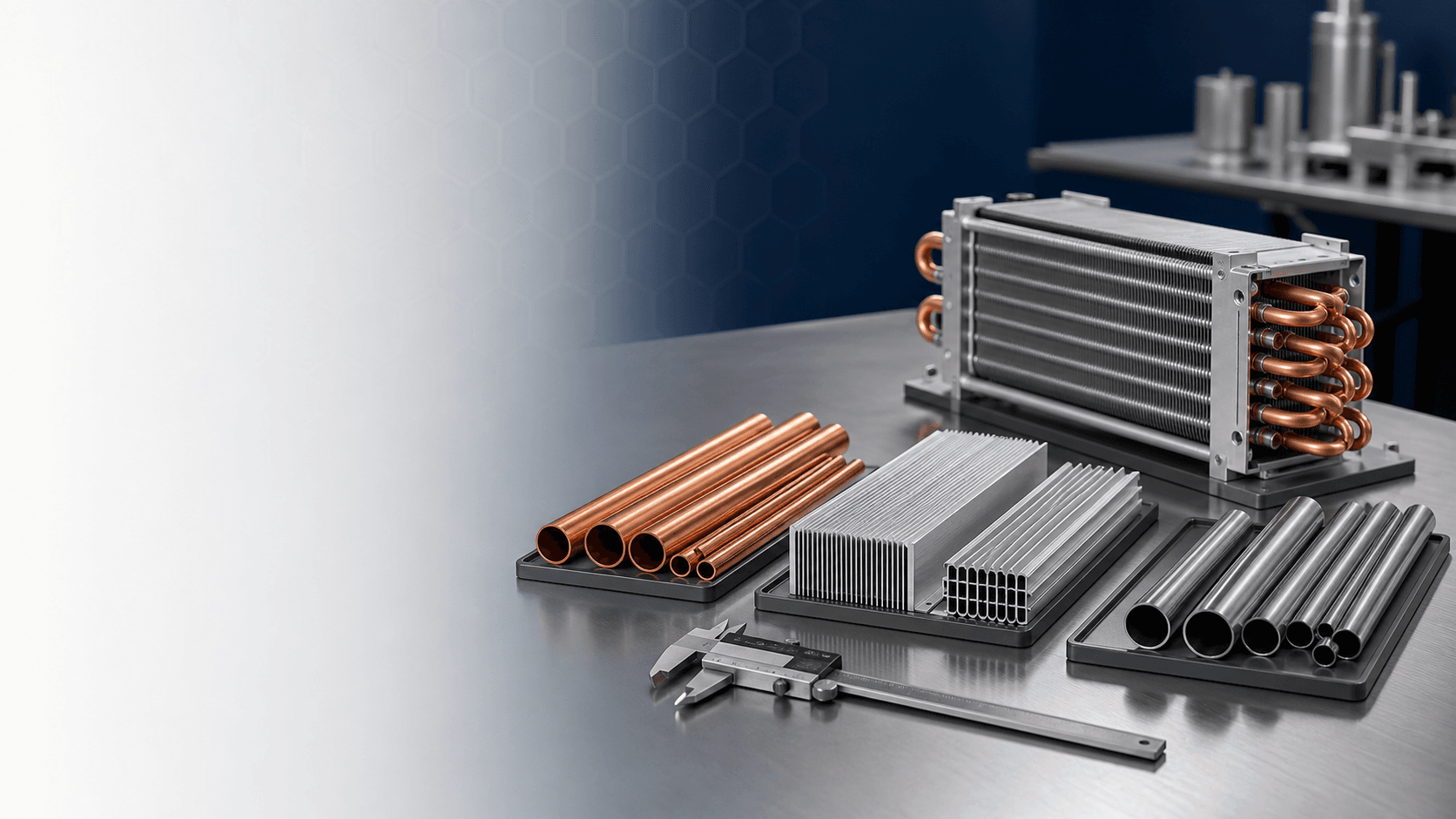

The material pair matters because metals can have different electrochemical potentials in the same environment. The relative exposed area also matters. A small anodic part connected to a much larger cathodic surface can be vulnerable, while a large anodic area paired with a small cathodic area may behave differently. Do not use a simple galvanic-series ranking as the only decision. Temperature, electrolyte chemistry, oxygen, coating damage and flow can change the practical outcome.
For a refrigeration coil, record the tube, fin, header, frame, bracket, fastener, support and drain materials separately. State which surfaces touch, which surfaces are separated by air or insulation, and which surfaces may be wet at the same time. A drawing should show material callouts and isolation points. If the buyer allows equivalent materials, the substitution rule should require a compatibility review rather than an automatic replacement.
Condensate, washdown and salt exposure
Galvanic corrosion risk rises when an electrolyte is present for long enough to sustain a current path. Cold-room condensate, humid air, washdown water, salt aerosol, food residue, cleaning chemicals and trapped water at insulation interfaces can all create different exposure patterns. Record where water forms, where it drains, how long the surface stays wet, and whether the coil is rinsed, dried or left to air dry. A dry room assumption should never be applied to a washdown process without evidence.
External exposure also changes with the installation. Outdoor condenser coils, rooftop packages, coastal warehouses and equipment near road salt may need a different material or coating plan from an indoor process coil. State the cleaning chemicals, concentration, temperature, frequency and rinse procedure. If a coating is used, define whether the coating covers fins, tubes, headers, frame and brackets, and how a cut edge or field scratch will be repaired without trapping moisture.
Isolation, drainage and coating controls
Electrical isolation can interrupt the galvanic cell, but the isolation system must remain effective after assembly, vibration, cleaning and service. Bushings, washers, sleeves, gaskets, coatings and separators should be shown on the drawing with material and thickness requirements where critical. Do not rely on a small plastic washer if the fastener can bypass it through a wet bracket or damaged coating. The assembly should be reviewed as installed, not only as separate parts on a bill of materials.
Drainage is equally important. A pan, header, support or insulation edge that holds condensate can create a local corrosion cell even when the fin pack is protected. Show slopes, drain holes, drain materials, access and cleaning route. If a coating is specified, include surface preparation, masking, thickness or coverage evidence, cure, repair, adhesion or other agreed checks. A coating that cannot be inspected or repaired in the field may create a hidden maintenance risk.
Inspection and corrosion evidence

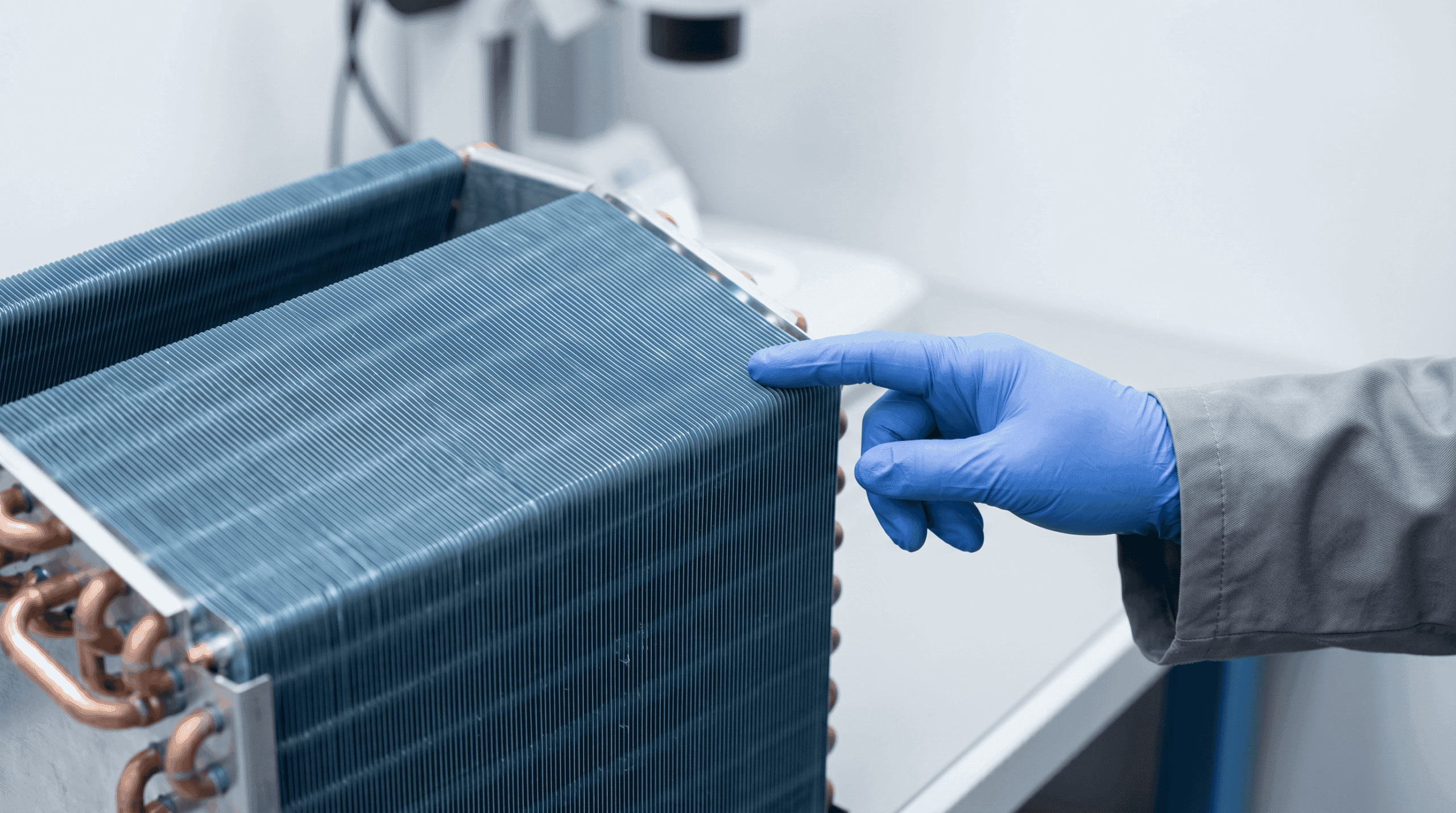

A galvanic corrosion inspection should look for pitting, white or green products, fin loss, coating blistering, edge attack, fastener staining, wet insulation, blocked drains, joint damage and corrosion at supports. Take photographs with location, date and part number. If the failure is serious, preserve a sample or section for engineering review rather than cleaning all evidence away. The inspection should compare dry and wet areas so the mechanism is not inferred from one isolated mark.

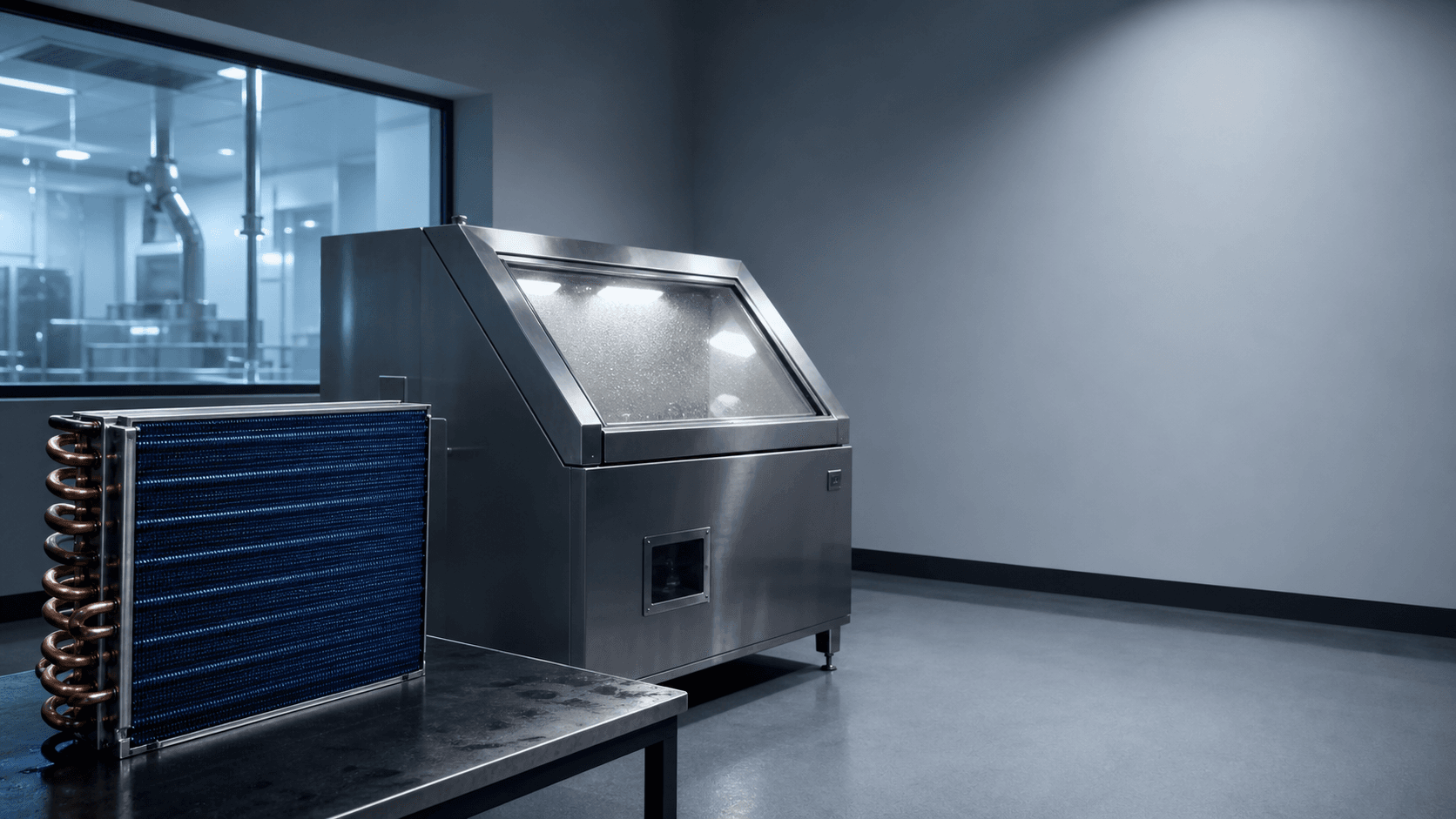

Laboratory or field evidence should match the risk. Salt-spray or humidity testing can compare coatings or material combinations, but the test condition does not reproduce every site. A field inspection may reveal that the dominant problem is a blocked drain or a cleaning chemical. Record the exposure, the material pair, the surface preparation, the test duration, the rating method and the decision made. The AHRI 410 reference can frame coil performance discussions, but corrosion evidence needs its own agreed basis.
Designing for service life
The goal of a galvanic corrosion review is not only to delay visible damage. It is to maintain heat transfer, pressure integrity, drainage, cleanability and service access for the expected life. Choose a material and protection system that the owner can inspect and maintain. A high-performance coating may be less useful than a simpler system if the site cannot clean, dry or repair it. A more compatible material pair may reduce maintenance even when its initial cost is higher.
Include the maintenance action in the design record. State how often the coil should be inspected, what surfaces should be checked, how dirt and salt should be removed, which chemicals are prohibited, how a coating scratch should be repaired, and how a drain should be cleared. For an industrial refrigeration coil, maintenance also needs to protect fins, joints, headers, insulation and nearby dissimilar metals. The inspection interval should reflect the actual wetting and contamination risk rather than a generic calendar.
Corrosion RFQ and replacement evidence
A corrosion-related RFQ should include the old coil, material list, drawings, photos, failure locations, cleaning history, exposure description, coating records, drain arrangement and the requested service life. Ask suppliers to identify the metal pairs, isolation points, coating surfaces, drainage assumptions, inspection evidence and replacement limitations. If the buyer wants an alternative material, define the thermal, pressure, forming, joining and cost boundaries that must remain fixed.
When the same coil is being replaced, preserve the field evidence and compare it with the original design intent. A larger or different material may change capacity, airflow, weight, supports or connection loads. A coating may change heat transfer or require a different cleaning procedure. The industrial refrigeration coils page and quality and testing laboratory can be used as the commercial route, but the final corrosion plan must be approved with the owner and responsible engineer.
Galvanic corrosion risk inputs
| Input | Examples | Why it matters |
|---|---|---|
| Metal pair | Copper, aluminum, steel, stainless steel | Determines electrochemical interaction |
| Electrolyte | Condensate, salt, wash water or humidity | Enables the corrosion cell |
| Electrical path | Direct contact, fastener or wet support | Completes the circuit |
| Area ratio | Small bracket beside a large fin pack | Changes local attack risk |
| Maintenance | Cleaning, drying and coating repair | Controls exposure over time |
Use this galvanic corrosion table as an RFQ discussion aid. The values and acceptance limits still need to be confirmed for the actual equipment, refrigerant, installation and project standard.
Corrosion prevention options
| Control | Application | Limitation to check |
|---|---|---|
| Material pairing | Select compatible tube, fin and frame materials | May affect cost and forming |
| Isolation | Use bushings, coatings or separators | Must survive assembly and service |
| Coating | Protect exposed metal surfaces | Damage and repair need control |
| Drainage | Prevent standing condensate | Depends on installation slope |
| Inspection | Check fins, joints and supports | Requires access and records |
Use this galvanic corrosion table as an RFQ discussion aid. The values and acceptance limits still need to be confirmed for the actual equipment, refrigerant, installation and project standard.
Corrosion validation plan
| Stage | Evidence | Decision |
|---|---|---|
| Material review | Material list and contact map | Risk pair identified |
| Coating review | Surface preparation and thickness record | Protection basis accepted |
| Exposure test | Salt, humidity or project-specific evidence | Environment response understood |
| Assembly check | Isolation and drain inspection | Installation path controlled |
| Service review | Inspection and repair instructions | Long-term risk managed |
Use this galvanic corrosion table as an RFQ discussion aid. The values and acceptance limits still need to be confirmed for the actual equipment, refrigerant, installation and project standard.
Implementation notes for an industrial project
The practical value of galvanic corrosion appears during the handoff between engineering, procurement, quality and installation. Engineering owns the duty and the assumptions. Procurement owns the commercial scope, quantity and delivery requirement. Quality owns the inspection and record package. Installation owns access, supports, connections, drainage and commissioning evidence. If each group receives a different version of the requirement, a supplier may be asked to solve four different problems under one part number.
Use one controlled requirement sheet for galvanic corrosion and give every revision a date, author and change note. A change to refrigerant, pressure, airflow, material, coating, connection, fin spacing or defrost can change more than one downstream document. Mark whether the change is an editorial correction, a performance change, a fit change, a safety change or a commercial change. This makes the approval path visible and helps the supplier identify whether an existing sample remains valid.
During sample approval, compare the actual part with the released drawing and the agreed test plan. Do not approve a sample because it looks similar to the previous coil. Check critical dimensions, connection orientation, supports, material and finish, labels, test evidence, packaging protection and any field-access requirement. For galvanic corrosion, the most expensive rework often happens when a sample is accepted visually but its operating assumptions were never confirmed.
During production release, keep the part number, drawing revision, inspection plan, material record and packaging instruction together. If the order includes multiple sizes or variants, make the SKU matrix explicit. Identify shared tooling and variant-specific tooling. Identify which dimensions can be checked with a common gauge and which need a variant-specific fixture. This is useful for galvanic corrosion because a family of coils can share a concept while still having different pressure, airflow, connection or corrosion risks.
After installation, record a baseline that connects the equipment condition to the delivered component. Depending on the application, this may include entering and leaving temperature, airflow or fluid flow, pressure, superheat or subcooling, humidity, frost or condensate, fan current, vibration, drain operation and defrost behavior. The baseline is not a universal acceptance value. It is a project record that allows the owner to distinguish normal variation from a design, installation or maintenance issue.
Maintenance instructions should be written around the actual failure mechanisms. A coil exposed to salt may need a different cleaning and inspection interval from a dry indoor coil. A frosted evaporator needs a different defrost and drain review from a dry cooler. A high-pressure component needs a different pressure and joint record from a low-pressure air coil. Make the galvanic corrosion maintenance discussion specific to the material, environment, operating cycle and access that were approved.
Keep the delivered documents usable for the people who will operate the equipment. A pressure or leak report should identify the part number and revision. A dimensional report should identify the datum and tolerance. A material or coating record should identify the lot or batch. A packing record should show how connections and fins were protected. This document discipline turns galvanic corrosion from a one-time purchase phrase into a traceable component record that can support service, replacement and future procurement.
When the project uses several suppliers, normalize the assumptions before the technical comparison. Ask each supplier to state the same duty point, property basis, airflow or fluid-flow basis, pressure-drop limit, material interpretation, test method, packaging scope and delivery term. If a supplier proposes a different route for galvanic corrosion, record the difference as a design option with its benefit, risk, evidence requirement and cost effect. This is more useful than forcing every quotation into a single unexplained unit price.
Keep questions open until the evidence is available, but do not let open questions disappear into email threads. Add an owner and due date to each one, and link the answer to the drawing revision or purchase specification. A small assumption register can record whether galvanic corrosion has been confirmed by calculation, supplier data, sample testing, site measurement or customer approval. That simple record helps prevent a technically correct component from being installed against an outdated requirement.
Finally, keep the scope honest. A supplier can review drawings, samples, materials, heat-transfer inputs, testing and packaging, but no article or quotation can replace the responsible engineer’s system design, code review, refrigerant safety plan or commissioning decision. The right outcome for galvanic corrosion is a documented proposal with open questions and agreed verification points. That gives the buyer a defensible basis for the next technical and commercial decision.
Practical next step for buyers
If the project is ready for a quotation, send the galvanic corrosion requirement together with the drawing or sample photos, operating conditions, pressure and temperature data, material requirements, connection layout, inspection plan, quantity ladder, packaging requirements and destination. Ask the supplier to return a marked assumption register, a proposed technical basis and a list of open questions before the commercial offer is approved.
When a buyer uses galvanic corrosion as the starting point, the most useful outcome is not a generic product description. It is a clear engineering trail from application to coil, from coil to test, and from test to installation. That trail helps procurement compare quotations and helps the project team identify what must be confirmed before sample or production release.
FAQ
What is galvanic corrosion in refrigeration coils?
It is electrochemical corrosion caused by dissimilar conductive metals connected in the presence of an electrolyte such as condensate, wash water, salt or humid contamination.
Can copper and aluminum be used in the same coil?
They can be used in some designs, but the actual contact, moisture, area ratio, joining, coating, insulation and service environment must be reviewed.
Does a coating eliminate galvanic corrosion?
A coating can reduce exposure but may be damaged, porous, poorly prepared or cut at joints. Drainage, isolation and inspection still matter.
Why is condensate important?
Condensate can act as an electrolyte and remain at joints, supports, fins, drains or insulation interfaces. Poor drainage can increase the exposure time.
What should a corrosion RFQ include?
Include every material, contact point, coating, cleaning chemical, humidity or salt exposure, drain path, test expectation and inspection requirement.
Can galvanic corrosion cause a coil leak?
It can contribute to wall loss or joint damage in a vulnerable environment. The failure mechanism should be confirmed by inspection rather than assumed from appearance alone.
Can Domi review a corroded replacement coil?
Domi can review photos, samples, dimensions, materials, operating conditions, cleaning exposure, coating needs and failure evidence before proposing a replacement.
Which test proves corrosion resistance?
No single test covers every field condition. The project should choose material, coating, salt, humidity, inspection or field-monitoring evidence that matches the actual environment.
